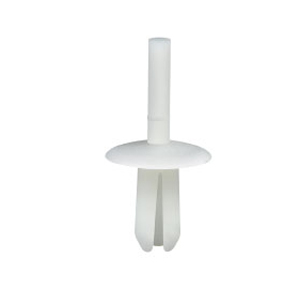

材料 | 尼龙6/6 |
颜色 | 自然色、黑色 |
特点 | 装配快捷, 经济耐用 |
铆钉扩张达到紧固配合 | |
良好绝缘性能 | |
防振动、磨损和腐蚀 | |
安装工具可供快速装配 | |
止动垫圈：钢，镀锌（只供保持开启特性的型号） |

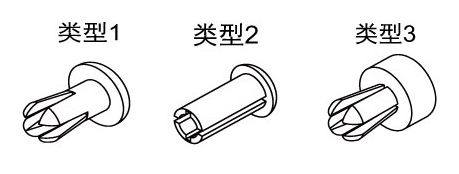

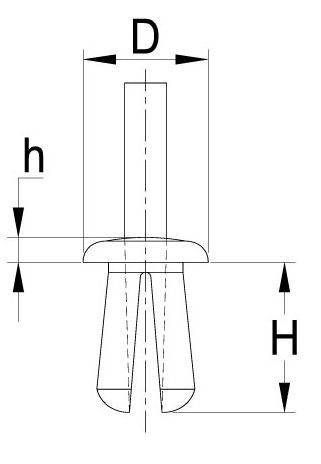

| 零件号 | 板材孔径 | 板材厚度 | H | h | 头部直径D | 类型 | 铆钉安装工具 | |
| 自然色 | 黑色 | |||||||
| EV103-22020001 | EV103-22020021 | 3.0 | 1.0 - 4.0 | 5.7 | 1.3 | 5.0 | 类型1 | EV283-22010001 |
| EV103-22020002 | EV103-22020022 | 3.5 | 1.0 - 5.0 | 6.8 | 1.3 | 6.0 | 类型1 | EV283-22010002 |
| EV103-22020003 | EV103-22020023 | 3.6 | 2.0 - 5.5 | 7.0 | 2.0 | 7.7 | 类型1 | - |
| EV103-22020004 | EV103-22020024 | 4.0 | 1.5 - 6.0 | 7.9 | 1.5 | 6.5 | 类型1 | EV283-22010003 |
| - | EV103-22020025 | 4.0 | 4.0 - 6.5 | 8.0 | 1.5 | 6.5 | 类型1 | - |
| EV103-22020005 | - | 4.4 | 1.0 - 3.5 | 5.0 | 1.7 | 6.0 | 类型1 | - |
| EV103-22020006 | EV103-22020026 | 4.8 | 1.6 - 4.7 | 7.4 | 2.5 | 8.7 | 类型1 | - |
| EV103-22020007 | EV103-22020027 | 4.8 | 1.0 - 9.5 | 10.7 | 1.6 | 7.1 | 类型2 | EV283-22010004 |
| EV103-22020008 | EV103-22020028 | 4.8 | 4.0 - 7.1 | 9.7 | 1.5 | 10.9 | 类型1 | EV283-22010004 |
| EV103-22020009 | EV103-22020029 | 4.8 | 4.0 - 8.7 | 11.0 | 1.2 | 7.1 | 类型1 | EV283-22010005 |
| EV103-22020010 | EV103-22020030 | 5.0 | 1.5 - 5.0 | 7.4 | 2.0 | 7.1 | 类型1 | - |
| EV103-22020011 | EV103-22020031 | 5.0 | 1.5 - 7.0 | 9.2 | 1.8 | 8.5 | 类型1 | EV283-22010006 |
| - | EV103-22020032 | 5.0 | 3.0 - 7.0 | 11.0 | 2.0 | 9.7 | 类型1 | - |
| EV103-22020012 | EV103-22020033 | 5.5 | 2.4 - 4.0 | 11.4 | 2.0 | 9.4 | 类型1 | EV283-22010004 |
| EV103-22020013 | EV103-22020034 | 6.0 | 2.0 - 8.0 | 10.5 | 2.2 | 10.0 | 类型1 | EV283-22010007 |
| EV103-22020014 | EV103-22020035 | 6.0 | 3.0 - 7.0 | 10.0 | 2.0 | 11.0 | 类型1 | EV283-22010008 |
| EV103-22020015 | EV103-22020036 | 6.4 | 1.5 - 6.4 | 9.3 | 4.7 | 11.1 | 类型3 | EV283-22010009 |
| EV103-22020016 | EV103-22020037 | 6.4 | 4.0 - 9.5 | 12.0 | 2.0 | 11.0 | 类型1 | - |
| EV103-22020017 | EV103-22020038 | 6.4 | 7.1 - 12.7 | 15.8 | 2.0 | 11.9 | 类型1 | EV283-22010009 |
| EV103-22020018 | EV103-22020039 | 7.0 | 2.5 - 9.0 | 11.8 | 2.6 | 12.0 | 类型1 | EV283-22010010 |
| EV103-22020019 | EV103-22020040 | 7.1 | 4.0 - 12.0 | 17.5 | 2.5 | 17.0 | 类型1 | EV283-22010011 |
| EV103-22020020 | EV103-22020041 | 8.0 | 3.0 - 10.0 | 13.0 | 3.0 | 13.5 | 类型1 | EV283-22010012 |
