| 注意 | 另有同规格带抛光饰面不锈钢底盘的调整脚可供选购 |
| 另有同规格带螺母样式可供选购 | |
| 衬垫有黑白两色可选，另有硫化橡胶材质（符合USDA美国农业部设备验收证书） | |
| 详情请联系我司营业人员 |

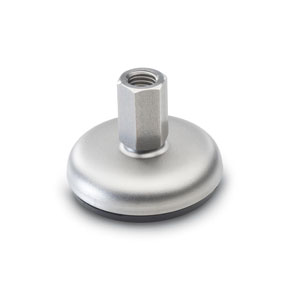

| 装配 | 带内螺纹，外六角立面 |
材料及表面处理
| 零件名 | 材料 | 表面处理 |
| 底盘 | AISI 304不锈钢 | 亚光喷砂饰面 |
| 螺杆 | AISI 303不锈钢 | - |
| 嵌入式橡胶衬垫 | 丁腈橡胶NBR | 黑色 |

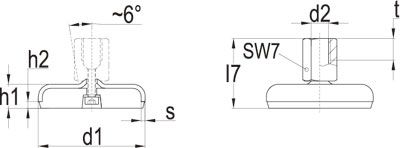

| 零件号 | l7 +4.0/0 | d2 | 承重[N] | d1 | SW7 | t | h1 | h2 | s |
| EV175-03060001 | 37 | M8 | 8000 | 50 | 14 | 8 | 14.5 | 3.5 | 3 |
| EV175-03060002 | 40 | M10 | 13000 | 14 | 10 | 14.5 | |||
| EV175-03060003 | 43 | M12 | 20000 | 17 | 12 | 14.5 | |||
| EV175-03060004 | 49 | M16 | 28000 | 22 | 16 | 16 | |||
| EV175-03060005 | 38 | M8 | 8000 | 60 | 14 | 8 | 16 | 4 | 3 |
| EV175-03060006 | 41 | M10 | 13000 | 14 | 10 | ||||
| EV175-03060007 | 45 | M12 | 20000 | 17 | 12 | ||||
| EV175-03060008 | 50 | M16 | 28000 | 22 | 16 | ||||
| EV175-03060009 | 40 | M8 | 8000 | 80 | 14 | 8 | 18 | 5 | 3 |
| EV175-03060010 | 43 | M10 | 13000 | 14 | 10 | ||||
| EV175-03060011 | 47 | M12 | 15000 | 17 | 12 | ||||
| EV175-03060012 | 52 | M16 | 19000 | 22 | 16 | ||||
| EV175-03060013 | 60 | M20 | 19000 | 27 | 20 | ||||
| EV175-03060014 | 42 | M8 | 8000 | 100 | 14 | 8 | 20 | 6 | 3 |
| EV175-03060015 | 45 | M10 | 13000 | 14 | 10 | ||||
| EV175-03060016 | 49 | M12 | 17000 | 17 | 12 | ||||
| EV175-03060017 | 54 | M16 | 17000 | 22 | 16 | ||||
| EV175-03060018 | 62 | M20 | 17000 | 27 | 20 | ||||
| EV175-03060019 | M20 | 65 | 25000 | 120 | 27 | 20 | 22 | 6 | 4 |
