材料 | 尼龙6/6 |
颜色 | 自然色 |
阻燃等级 | UL94-V2 |

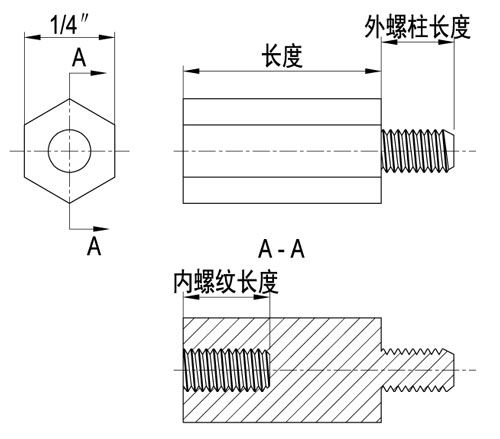

| 零件号 | 螺钉尺寸 | 螺纹规格 | 六角长度 |
| EV112-19010001 | 4 | 4-40 | 1/4 (6.35) |
| EV112-19010002 | 4 | 4-40 | 5/16 (7.94) |
| EV112-19010003 | 4 | 4-40 | 3/8 (9.53) |
| EV112-19010004 | 4 | 4-40 | 1/2 (12.7) |
| EV112-19010005 | 4 | 4-40 | 0.600 (15.24) |
| EV112-19010006 | 4 | 4-40 | 5/8 (15.88) |
| EV112-19010007 | 4 | 4-40 | 3/4 (19.05) |
| EV112-19010008 | 4 | 4-40 | 7/8 (22.22) |
| EV112-19010009 | 4 | 4-40 | 1 (25.40) |
| EV112-19010010 | 4 | 4-40 | 1 1/8 (28.58) |
| EV112-19010011 | 4 | 4-40 | 1 1/4 (31.75) |
| EV112-19010012 | 4 | 4-40 | 1 3/8 (34.93) |
| EV112-19010013 | 4 | 4-40 | 1 1/2 (38.10) |
| EV112-19010014 | 4 | 4-40 | 1 5/8 (41.28) |
| EV112-19010015 | 4 | 4-40 | 1 3/4 (44.45) |
| EV112-19010016 | 4 | 4-40 | 2 (50.80) |
| EV112-19010017* | 6 | 6-32 | 1/4 (6.35) |
| EV112-19010018** | 6 | 6-32 | 17/64 (6.75) |
| EV112-19010019 | 6 | 6-32 | 3/8 (9.53) |
| EV112-19010020 | 6 | 6-32 | 1/2 (12.70) |
| EV112-19010021 | 6 | 6-32 | 9/16 (14.27) |
| EV112-19010022 | 6 | 6-32 | 5/8 (15.88) |
| EV112-19010023 | 6 | 6-32 | 3/4 (19.05) |
| EV112-19010024 | 6 | 6-32 | 7/8 (22.22) |
| EV112-19010025 | 6 | 6-32 | 15/16 (23.81) |
| EV112-19010026 | 6 | 6-32 | 1 (25.40) |
| EV112-19010027 | 6 | 6-32 | 1 1/8 (28.58) |
| EV112-19010028 | 6 | 6-32 | 1 1/4 (31.75) |
| EV112-19010029 | 6 | 6-32 | 1 5/16 (33.32) |
| EV112-19010030 | 6 | 6-32 | 1 3/8 (34.93) |
| EV112-19010031 | 6 | 6-32 | 1 1/2 (38.10) |
| EV112-19010032 | 6 | 6-32 | 1 5/8 (41.28) |
| EV112-19010033 | 6 | 6-32 | 1 3/4 (44.45) |
| EV112-19010034 | 6 | 6-32 | 2 (50.80) |
| EV112-19010035*** | 8 | 8-32 | 1/4 (6.35) |
| EV112-19010036**** | 8 | 8-32 | 3/8 (9.53) |
| EV112-19010037 | 8 | 8-32 | 1/2 (12.7) |
| EV112-19010038 | 8 | 8-32 | 5/8 (15.88) |
| EV112-19010039 | 8 | 8-32 | 3/4 (19.05) |
| EV112-19010040 | 8 | 8-32 | 7/8 (22.22) |
| EV112-19010041 | 8 | 8-32 | 1 (25.40) |
| EV112-19010042 | 8 | 8-32 | 1 1/8 (28.58) |
| EV112-19010043 | 8 | 8-32 | 1 1/4 (31.75) |
| EV112-19010044 | 8 | 8-32 | 1 3/8 (34.93) |
| EV112-19010045 | 8 | 8-32 | 1 1/2 (38.10) |
| EV112-19010046 | 8 | 8-32 | 1 5/8 (41.28) |
| EV112-19010047 | 8 | 8-32 | 1 3/4 (44.45) |
| EV112-19010048 | 8 | 8-32 | 2 (50.80) |
| * 内螺纹长度=3/16 |
| ** 内螺纹长度=13/64 |
| *** 内螺纹长度= .200 |
| **** 内螺纹长度= .270 |
