材料 | 尼龙6/6 |
颜色 | 自然色 |
阻燃等级 | UL94-V2 |

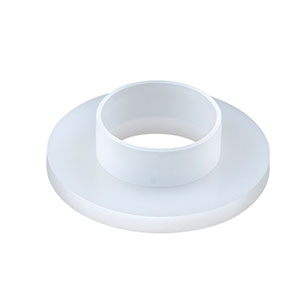

特点 | 尼龙螺钉绝缘套旨在使金属螺钉与电绝缘，同时使金属抗腐蚀 |
该产品在一些领域也可当做轻载型轴承使用 | |
没有显示的尺寸可按要求开模定制 |

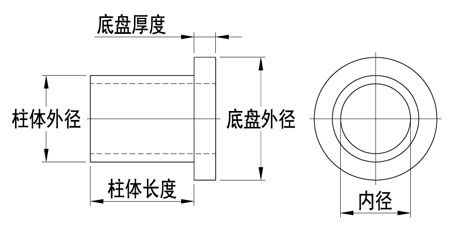

| 零件号 | 描 述 | 内径 | 柱体长度 | 底盘外径 | 底盘厚度 | 柱体外径 |
| EV213-19010001 | SCM 2× 3 | 2.1 | 3 | 4.2 | 1.0 | 3.0 |
| EV213-19010002 | SCM 2× 4 | 2.1 | 4 | 4.2 | 1.0 | 3.0 |
| EV213-19010003 | SCM 2× 5 | 2.1 | 5 | 4.2 | 1.0 | 3.0 |
| EV213-19010004 | SCM 2× 6 | 2.1 | 6 | 4.2 | 1.0 | 3.0 |
| EV213-19010005 | SCM 3× 2 | 3.1 | 2 | 6.2 | 1.0 | 4.0 |
| EV213-19010006 | SCM 3× 3 | 3.1 | 3 | 6.2 | 1.0 | 4.0 |
| EV213-19010007 | SCM 3× 4 | 3.1 | 4 | 6.2 | 1.0 | 4.0 |
| EV213-19010008 | SCM 3× 5 | 3.1 | 5 | 6.2 | 1.0 | 4.0 |
| EV213-19010009 | SCM 3× 6 | 3.1 | 6 | 6.2 | 1.0 | 4.0 |
| EV213-19010010 | SCM 3× 7 | 3.1 | 7 | 6.2 | 1.0 | 4.0 |
| EV213-19010011 | SCM 3× 8 | 3.1 | 8 | 6.2 | 1.0 | 4.0 |
| EV213-19010012 | SCM 3× 9 | 3.1 | 9 | 6.2 | 1.0 | 4.0 |
| EV213-19010013 | SCM 3×10 | 3.1 | 10 | 6.2 | 1.0 | 4.0 |
| EV213-19010014 | SCM 4× 3 | 4.1 | 3 | 8.4 | 1.5 | 6.0 |
| EV213-19010015 | SCM 4× 4 | 4.1 | 4 | 8.4 | 1.5 | 6.0 |
| EV213-19010016 | SCM 4× 5 | 4.1 | 5 | 8.4 | 1.5 | 6.0 |
| EV213-19010017 | SCM 4× 7 | 4.1 | 7 | 8.4 | 1.5 | 6.0 |
| EV213-19010018 | SCM 4× 9 | 4.1 | 9 | 8.4 | 1.5 | 6.0 |
| EV213-19010019 | SCM 5× 3 | 5.1 | 3 | 10.2 | 2.0 | 7.0 |
| EV213-19010020 | SCM 5× 4 | 5.1 | 4 | 10.2 | 2.0 | 7.0 |
| EV213-19010021 | SCM 5× 5 | 5.1 | 5 | 10.2 | 2.0 | 7.0 |
| EV213-19010022 | SCM 5× 7 | 5.1 | 7 | 10.2 | 2.0 | 7.0 |
| EV213-19010023 | SCM 5× 9 | 5.1 | 9 | 10.2 | 2.0 | 7.0 |
| EV213-19010024 | SCM 6× 4 | 6.1 | 4 | 12.2 | 2.0 | 8.0 |
| EV213-19010025 | SCM 6× 6 | 6.1 | 6 | 12.2 | 2.0 | 8.0 |
| EV213-19010026 | SCM 6× 8 | 6.1 | 8 | 12.2 | 2.0 | 8.0 |
| EV213-19010027 | SCM 6×10 | 6.1 | 10 | 12.2 | 2.0 | 8.0 |
| EV213-19010028 | SCM 6×12 | 6.1 | 12 | 12.2 | 2.0 | 8.0 |
| EV213-19010029 | SCM 8× 4 | 8.1 | 4 | 14.2 | 2.5 | 10.0 |
| EV213-19010030 | SCM 8× 6 | 8.1 | 6 | 14.2 | 2.5 | 10.0 |
| EV213-19010031 | SCM 8× 8 | 8.1 | 8 | 14.2 | 2.5 | 10.0 |
| EV213-19010032 | SCM 8×10 | 8.1 | 10 | 14.2 | 2.5 | 10.0 |
| EV213-19010033 | SCM 8×12 | 8.1 | 12 | 14.2 | 2.5 | 10.0 |
