| 注意 | 另有同规格不锈钢材质的调整脚可供选购 |
| 另有同规格带螺母样式可供选购 | |
| 另有不带橡胶衬垫规格可供选购 | |
| 详情请联系我司营业人员 | |
| 装配 | 不带螺母，底部外六角立面 |
材料及表面处理
| 零件名 | 材料 | 表面处理 |
| 底盘 | 钢 | 镀锌 |
| 螺杆 | 钢 | 镀锌，蓝钝处理 |
| 橡胶衬垫 | TPE | 黑色 |

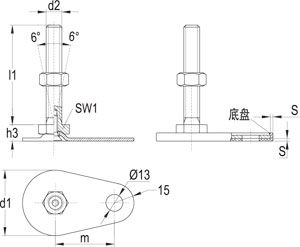

| 零件号 | l1 | d2 | 承重[N] | d1 | h1 | m | s | h3 | SW1 |
| EV175-03090001 | 40 | M8 | 8000 | 50 | 2.5 | 45 | 2 | 11 | 17 |
| EV175-03090002 | 50 | ||||||||
| EV175-03090003 | 63 | ||||||||
| EV175-03090004 | 50 | M10 | 8000 | ||||||
| EV175-03090005 | 60 | ||||||||
| EV175-03090006 | 80 | ||||||||
| EV175-03090007 | 100 | ||||||||
| EV175-03090008 | 60 | M12 | 8000 | ||||||
| EV175-03090009 | 80 | ||||||||
| EV175-03090010 | 100 | ||||||||
| EV175-03090011 | 125 | ||||||||
| EV175-03090012 | 40 | M8 | 8000 | 60 | 2.5 | 50 | 2 | 11 | 17 |
| EV175-03090013 | 50 | ||||||||
| EV175-03090014 | 63 | ||||||||
| EV175-03090015 | 50 | M10 | 10000 | ||||||
| EV175-03090016 | 60 | ||||||||
| EV175-03090017 | 80 | ||||||||
| EV175-03090018 | 100 | ||||||||
| EV175-03090019 | 60 | M12 | 10000 | ||||||
| EV175-03090020 | 80 | ||||||||
| EV175-03090021 | 100 | ||||||||
| EV175-03090022 | 125 | ||||||||
| EV175-03090023 | 40 | M8 | 8000 | 80 | 3 | 70 | 2 | 12 | 17 |
| EV175-03090024 | 50 | ||||||||
| EV175-03090025 | 63 | ||||||||
| EV175-03090026 | 50 | M10 | 10000 | ||||||
| EV175-03090027 | 60 | ||||||||
| EV175-03090028 | 80 | ||||||||
| EV175-03090029 | 100 | ||||||||
| EV175-03090030 | 60 | M12 | 12000 | ||||||
| EV175-03090031 | 80 | ||||||||
| EV175-03090032 | 100 | ||||||||
| EV175-03090033 | 125 |
