| 注意 | 另有更多规格尺寸可供选择 |
| 另有同规格不锈钢材质的调整脚可供选购 | |
| 另有不带橡胶衬垫规格可供选购 | |
| 详情请联系我司营业人员 | |

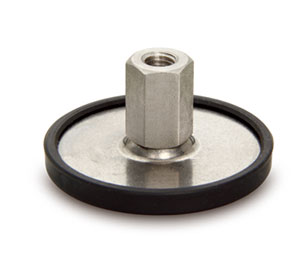

| 装配 | 带内螺纹，外六角立面 |
材料及表面处理
| 零件名 | 材料 | 表面处理 |
| 底盘 | 钢 | 镀锌 |
| 螺母 | 钢 | 镀锌，蓝钝处理 |
| 橡胶衬垫 | TPE | 黑色 |

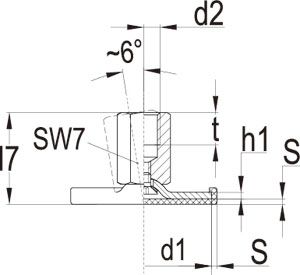

| 零件号 | l7 | d2 | 承重[N] | d1 | t | SW7 | h1 | s |
| EV175-03080001 | 25 | M8 | 7000 | 40 | 8 | 14 | 2 | 1.5 |
| EV175-03080002 | 28 | M10 | 10 | 14 | ||||
| EV175-03080003 | 31 | M12 | 12 | 17 | ||||
| EV175-03080004 | 37 | M16 | 16 | 22 | ||||
| EV175-03080005 | 25 | M8 | 8000 | 50 | 8 | 14 | 2.5 | 2 |
| EV175-03080006 | 28 | M10 | 10 | 14 | ||||
| EV175-03080007 | 32 | M12 | 12 | 17 | ||||
| EV175-03080008 | 37 | M16 | 16 | 22 | ||||
| EV175-03080009 | 25 | M8 | 8000 | 60 | 8 | 14 | 2.5 | 2 |
| EV175-03080010 | 28 | M10 | 10000 | 10 | 14 | |||
| EV175-03080011 | 32 | M12 | 12 | 17 | ||||
| EV175-03080012 | 37 | M16 | 16 | 22 | ||||
| EV175-03080013 | 26 | M8 | 8000 | 80 | 8 | 14 | 3 | 2 |
| EV175-03080014 | 29 | M10 | 10000 | 10 | 14 | |||
| EV175-03080015 | 32 | M12 | 12000 | 12 | 17 | |||
| EV175-03080016 | 38 | M16 | 16 | 22 | ||||
| EV175-03080017 | 45 | M20 | 20 | 27 |
