水平调整件 EV175-0302/0311-上海义文工业五金

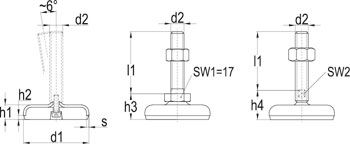

GN-31-S-T-水平调整件-线描图ok

注意	另有更多规格尺寸可供选择
	另有同规格带抛光饰面不锈钢底盘的调整脚可供选购
	衬垫有黑白两色可选，另有硫化橡胶材质（符合USDA美国农业部设备验收证书）
	详情请联系我司营业人员

装配	不带螺母
	d2小于M12时，底部外六角立面
	d2大于M12时，底部扳手立面

材料及表面处理

零件名	材料	表面处理
底盘	AISI 304不锈钢	亚光喷砂饰面
螺杆	AISI 303不锈钢	-
嵌入式橡胶衬垫	丁腈橡胶NBR	黑色

零件号	l₁	d₂	承重[N]	d₁	h_{3 +4.0/0}	s	SW2	h₁	h₂
EV175-03110001	40	M8	8000	50	23	3	-	14.5	3.5
EV175-03110002	50
EV175-03110003	63
EV175-03110004	50	M10	14000
EV175-03110005	60
EV175-03110006	80
EV175-03110007	100
EV175-03110008	60	M12	20000
EV175-03110009	80
EV175-03110010	100
EV175-03110011	125
EV175-03110012	40	M8	8000	60	26	3	-	16	4
EV175-03110013	50
EV175-03110014	63
EV175-03110015	50	M10	14000
EV175-03110016	60
EV175-03110017	80
EV175-03110018	100
EV175-03110019	60	M12	20000
EV175-03110020	80
EV175-03110021	100
EV175-03110022	125
EV175-03110023	40	M8	8000	80	26	3	-	18	5
EV175-03110024	50
EV175-03110025	63
EV175-03110026	50	M10	14000
EV175-03110027	60
EV175-03110028	80
EV175-03110029	100
EV175-03110030	60	M12	19000
EV175-03110031	80
EV175-03110032	100
EV175-03110033	125
EV175-03110034	40	M8	8000	100	28	3	-	20	6
EV175-03110035	50
EV175-03110036	63
EV175-03110037	50	M10	14000
EV175-03110038	60
EV175-03110039	80
EV175-03110040	100
EV175-03110041	60	M12	17000
EV175-03110042	80
EV175-03110043	100
EV175-03110044	125
EV175-03020001	75	M16	28000	50	29	3	12	16	3.5
EV175-03020002	100
EV175-03020003	125
EV175-03020004	150
EV175-03020005	200
EV175-03020006	75	M16	28000	60	30	3	12	16	4
EV175-03020007	100
EV175-03020008	125
EV175-03020009	150
EV175-03020010	200
EV175-03020011	75	M16	19000	80	32	3	12	18	5
EV175-03020012	100
EV175-03020013	125
EV175-03020014	150
EV175-03020015	200
EV175-03020016	75	M20	19000		33	3	15
EV175-03020017	100
EV175-03020018	125
EV175-03020019	150
EV175-03020020	200
EV175-03020021	100	M24	19000		36	3	19
EV175-03020022	125
EV175-03020023	150
EV175-03020024	200
EV175-03020025	75	M16	17000	100	34	3	12	20	6
EV175-03020026	100
EV175-03020027	125
EV175-03020028	150
EV175-03020029	200
EV175-03020030	75	M20	17000		35	3	15
EV175-03020031	100
EV175-03020032	125
EV175-03020033	150
EV175-03020034	200
EV175-03020035	100	M24	17000		38	3	19
EV175-03020036	125
EV175-03020037	150
EV175-03020038	200
EV175-03020039	100	M20	25000	120	39	4	15	22	6
EV175-03020040	125
EV175-03020041	150
EV175-03020042	200
EV175-03020043	100	M24	25000		42	4	19
EV175-03020044	125
EV175-03020045	150
EV175-03020046	200
EV175-03020047	100	M30	25000		46	4	24
EV175-03020048	125
EV175-03020049	150
EV175-03020050	200
