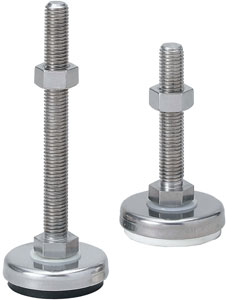

| 特点 | 螺杆、底座盖采用不锈钢制，耐腐蚀性优异。 |
| 螺杆底面开有十字螺丝刀用十字槽，可用冲击扳手等方便地安装。 | |
| 氯丁橡胶底座具有优异的耐侯性。 | |
| 乙丙橡胶底座具有优异的耐热性、耐侯性。另外，还具有防滑性。 |
材料及表面处理

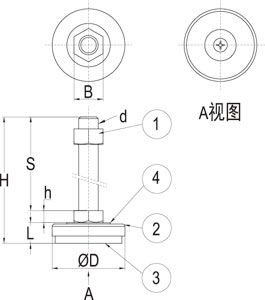

| 编号 | 零件名 | 材料 | 表面处理 |
| 1 | 螺杆 | 不锈钢SUS304 | 电解抛光 |
| 2 | 底座盖 | 不锈钢SUS304 | 电解抛光 |
| 3 | 底座 | 氯丁橡胶/乙丙橡胶 | 黑色/白色 |
| 4 | 垫圈 | 聚酰胺 | - |
| 零件号 | H | S | d | D | B | L | h | 承重[N] | 底座材料 |
| EV175-12020001 | 78.5 | 60 | M8x1.25 | 40 | 13 | 13 | 5.5 | 3724 | 黑色氯丁橡胶 |
| EV175-12020002 | 70 | 50 | M10x1.5 | 40 | 17 | 13 | 7 | 6272 | |
| EV175-12020003 | 93 | 70 | M12x1.75 | 50 | 19 | 15 | 8 | 8722 | |
| EV175-12020004 | 123 | 100 | 8722 | ||||||
| EV175-12020005 | 143 | 120 | 7644 | ||||||
| EV175-12020006 | 173 | 150 | 7350 | ||||||
| EV175-12020007 | 97 | 70 | M16x2 | 60 | 24 | 17 | 10 | 14308 | |
| EV175-12020008 | 127 | 100 | 14210 | ||||||
| EV175-12020009 | 157 | 130 | 12544 | ||||||
| EV175-12020010 | 177 | 150 | 11760 | ||||||
| EV175-12020011 | 207 | 180 | 10878 | ||||||
| EV175-12020012 | 130 | 100 | M20x2.5 | 60 | 30 | 17 | 13 | 17150 | |
| EV175-12020013 | 160 | 130 | 15876 | ||||||
| EV175-12020014 | 180 | 150 | 15092 | ||||||
| EV175-12020015 | 210 | 180 | 13818 | ||||||
| EV175-12020016 | 78.5 | 60 | M8x1.25 | 40 | 13 | 13 | 5.5 | 4214 | 白色乙丙橡胶 |
| EV175-12020017 | 70 | 50 | M10x1.5 | 40 | 17 | 13 | 7 | 5978 | |
| EV175-12020018 | 93 | 70 | M12x1.75 | 50 | 19 | 15 | 8 | 8330 | |
| EV175-12020019 | 123 | 100 | 7840 | ||||||
| EV175-12020020 | 143 | 120 | 8526 | ||||||
| EV175-12020021 | 173 | 150 | 6958 | ||||||
| EV175-12020022 | 97 | 70 | M16x2 | 60 | 24 | 17 | 10 | 13622 | |
| EV175-12020023 | 127 | 100 | 12348 | ||||||
| EV175-12020024 | 157 | 130 | 11760 | ||||||
| EV175-12020025 | 177 | 150 | 12152 | ||||||
| EV175-12020026 | 207 | 180 | 10486 | ||||||
| EV175-12020027 | 130 | 100 | M20x2.5 | 60 | 30 | 17 | 13 | 15092 | |
| EV175-12020028 | 160 | 130 | 15974 | ||||||
| EV175-12020029 | 180 | 150 | 14112 | ||||||
| EV175-12020030 | 210 | 180 | 14798 |
