材料 | 尼龙6/6 |
颜色 | 自然色 |
阻燃等级 | UL94-V2 |
标准 | DIN 34816 |

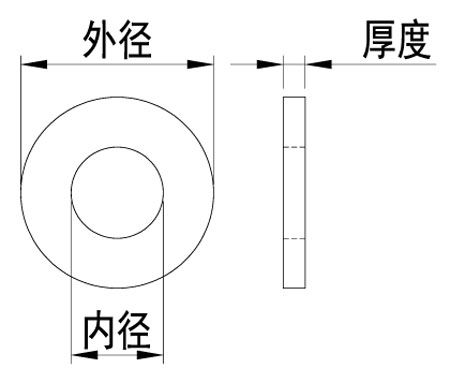

| 零件号 | 螺钉规格 | 外径 | 内径 | 厚度 | |||||
| 外径 | 厚度 | MAX. | MIN. | MAX. | MIN. | MAX. | MIN. | ||
| EV105-19040001 | M3 | 9 | 0.8 | 9 mm | 8.64 mm | 3.38 mm | 3.2 mm | 0.9 mm | 0.7 mm |
| EV105-19040002 | M4 | 12 | 1 | 12 mm | 11.57 mm | 4.48 mm | 4.3 mm | 1.1 mm | 0.9 mm |
| EV105-19040003 | M5 | 15 | 1.2 | 15 mm | 14.57 mm | 5.48 mm | 5.3 mm | 1.4 mm | 1.0 mm |
| EV105-19040004 | M6 | 18 | 1.6 | 18 mm | 17.57 mm | 6.62 mm | 6.4 mm | 1.8 mm | 1.4 mm |
| EV105-19040005 | M8 | 24 | 2 | 24 mm | 23.48 mm | 8.62 mm | 8.4 mm | 2.2 mm | 1.8 mm |
| EV105-19040006 | M10 | 30 | 2.5 | 30 mm | 29.48 mm | 10.77 mm | 10.5 mm | 2.7 mm | 2.3 mm |
| EV105-19040007 | M12 | 37 | 3 | 37 mm | 36.38 mm | 13.27 mm | 13 mm | 3.3 mm | 2.7 mm |
| EV105-19040008 | M16 | 50 | 3 | 50 mm | 49.38 mm | 17.27 mm | 17 mm | 3.3 mm | 2.7 mm |
