义文机电美制防落垫圈 EV105-1901参数信息

300

未标题-1

材料

尼龙6/6

颜色

自然色

阻燃等级

UL94-V2

注意

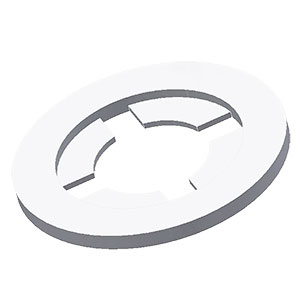

该产品类似于我们的标准平垫圈，但其特殊设计的锯齿形内圈可以使此防落垫圈长久地套在螺钉的螺纹部分。垫圈虽然在螺纹上容易滑动，但是可以保持不脱落的状态。在需要预先装配垫圈的螺钉上使用

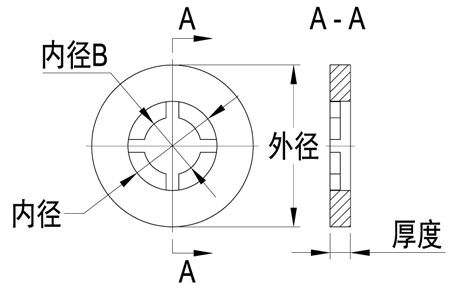

零件号螺钉规格 inch外径厚度内径内径 B
EV105-19010001213/64 (5.16)0.032 (0.81)0.115 (2.92)0.078 (1.98)
EV105-19010002213/64 (5.16)0.062 (1.58)0.115 (2.92)0.078 (1.98)
EV105-19010003417/64 (6.75)0.032 (0.81)0.156 (3.96)0.102 (2.59)
EV105-1901000441/4 (25.4)0.050 (1.27)0.156 (3.96)0.102 (2.59)
EV105-19010005417/64 (6.75)0.062 (1.58)0.156 (3.96)0.102 (2.59)
EV105-19010006417/64 (6.75)0.125 (3.18)0.156 (3.96)0.102 (2.59)
EV105-19010007621/64 (8.33)0.032 (0.81)0.198 (5.03)0.128 (3.25)
EV105-19010008621/64 (8.33)0.062 (1.58)0.198 (5.03)0.128 (3.25)
EV105-1901000970.75 (19.05)0.062 (1.58)0.375 (9.53)0.215 (5.46)
EV105-1901001071 (25.4)0.062 (1.58)0.375 (9.53)0.215 (5.46)
EV105-19010011825/64 (9.92)0.032 (0.81)0.235 (5.97)0.152 (3.86)
EV105-1901001280.39 (9.91)0.235 (5.97)0.135 (3.43)0.032 (0.81)
EV105-1901001380.28 (8.33)0.235 (5.96)0.152 (3.86)0.032 (0.81)
EV105-1901001480.453 (11.51)0.218 (5.54)0.135 (3.43)0.045 (1.14)
EV105-19010015825/64 (9.92)0.235 (5.97)0.152 (3.86)0.062 (1.58)
EV105-190100161029/64 (11.51)0.277 (7.04)0.177 (4.50)0.032 (0.81)
EV105-19010017100.787 (19.99)0.275 (6.99)0.177 (4.50)0.059 (1.50)
EV105-190100181029/64 (11.51)0.277 (7.04)0.177 (4.50)0.062 (1.58)
EV105-19010019101/2 (12.70)0.277 (7.04)0.177 (4.50)0.062 (1.58)
EV105-19010020100.63 (16.00)0.277 (7.04)0.177 (4.50)0.062 (1.58)
EV105-19010021  1/419/32 (15.08)0.375 (9.53)0.234 (5.94)0.032 (0.81)
EV105-19010022  1/40.500 (12.70)0.344 (8.74)0.234 (5.94)0.032 (0.81)
EV105-19010023  1/419/32 (15.08)0.375 (9.53)0.234 (5.94)0.062 (1.58)
EV105-19010024  1/41-1/2 (38.10)0.450 (11.43)0.234 (5.94)0.062 (1.58)
EV105-19010025  1/41-1/2 (38.10)0.375 (9.53)0.234 (5.94)0.062 (1.58)
EV105-19010026  1/40.734 (15.64)0.375 (9.53)0.234 (5.94)0.062 (1.57)
EV105-19010027  5/1647/64 (18.65)0.470 (11.94)0.292 (7.42)0.032 (0.81)
EV105-19010028  5/1647/64 (18.65)0.470 (11.94)0.292 (7.42)0.062 (1.58)
EV105-19010029  3/857/64 (22.62)0.564 (14.33)0.350 (8.89)0.032 (0.81)
EV105-19010030  3/857/64 (22.62)0.564 (14.33)0.350 (8.89)0.062 (1.58)
EV105-19010031  3/81.260 (32.00)0.563 (14.30)0.350 (8.89)0.062 (1.58)
EV105-19010032  3/847/64 (18.65)0.564 (14.33)0.350 (8.89)0.062 (1.58)
EV105-19010033  7/161-1/32 (26.19)0.570 (14.48)0.410 (10.41)0.032 (0.81)
EV105-19010034  7/161-1/32 (26.19)0.570 (14.48)0.410 (10.41)0.062 (1.58)
EV105-19010035  1/21-1/8 (28.58)0.690 (17.53)0.468 (11.89)0.032 (0.81)
EV105-19010036  1/21-1/8 (28.58)0.690 (17.53)0.468 (11.89)0.062 (1.58)
EV105-19010037  7/81-11/32 (34.14)0.940 (23.88)0.825 (20.96)0.062 (1.58)
EV105-1901003811.385 (35.18)1.070 (27.18)0.970 (24.64)0.062 (1.58)
