注意 | 另有其它表面处理方式可供选择，详情请联系我司营业人员 |
装配 | 光孔或螺纹盲孔 |
材料及表面处理
规格 | 材料 | 表面处理 |

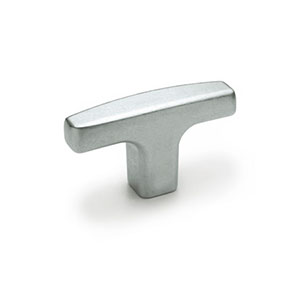

BL型 | 铝制 | 铝本色 |
SW型 | 铝制 | 黑色亚光，环氧树脂涂层 |

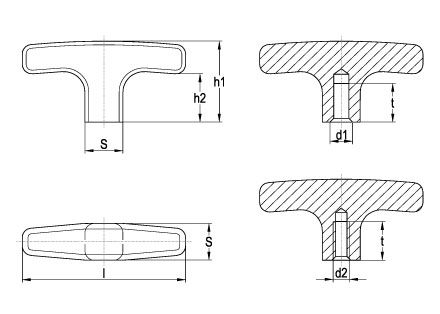

| 零件号 | 规格 | l | s | h1 | h2 | d1 | d2 | tmin | 重量[g] |
| EV153-03110001 | BL型 | 55 | 14 | 33 | 22 | 6 | - | 12 | 30 |
| EV153-03110002 | 67 | 16 | 37 | 25 | 8 | - | 16 | 45 | |
| EV153-03110003 | 80 | 20 | 41 | 26 | 8 | - | 16 | 75 | |
| EV153-03110004 | 55 | 14 | 33 | 22 | - | M6 | 12 | 35 | |
| EV153-03110005 | - | M8 | 40 | ||||||
| EV153-03110006 | 67 | 16 | 37 | 25 | - | M8 | 16 | 60 | |
| EV153-03110007 | 80 | 20 | 41 | 26 | - | M8 | 16 | 80 | |
| EV153-03110008 | - | M10 | 95 | ||||||
| EV153-03110009 | SW型 | 55 | 14 | 33 | 22 | 6 | - | 12 | 30 |
| EV153-03110010 | 67 | 16 | 37 | 25 | 8 | - | 16 | 45 | |
| EV153-03110011 | 80 | 20 | 41 | 26 | 8 | - | 16 | 80 | |
| EV153-03110012 | 55 | 14 | 33 | 22 | - | M6 | 12 | 35 | |
| EV153-03110013 | - | M8 | 40 | ||||||
| EV153-03110014 | 67 | 16 | 37 | 25 | - | M8 | 16 | 60 | |
| EV153-03110015 | 80 | 20 | 41 | 26 | - | M8 | 16 | 80 | |
| EV153-03110016 | - | M10 | 95 |
