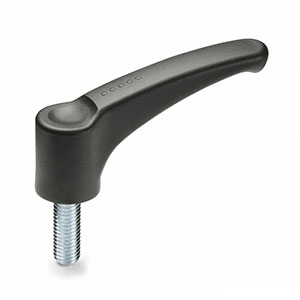

材料及表面处理 | 玻纤加固PA，黑灰色，亚光饰面 |
装配 | 镀锌钢螺杆带倒角平头 |

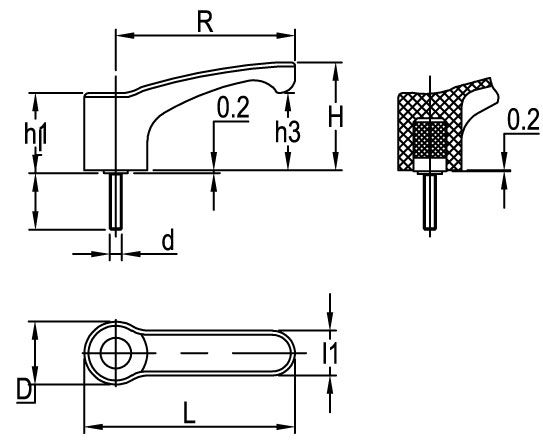

| 零件号 | R | L | D | H | h1 | h3 | l1 | d | l | 重量[g] |
| EV153-02110001 | 44 | 52 | 15.5 | 26.5 | 19 | 19 | 11 | M6 | 16 | 13 |
| EV153-02110002 | 63 | 73.5 | 19 | 35 | 24.5 | 26.5 | 13.5 | M8 | 25 | 32 |
| EV153-02110003 | 63 | 73.5 | 19 | 35 | 24.5 | 26.5 | 13.5 | M8 | 45 | 42 |
| EV153-02110004 | 78 | 90.5 | 23 | 42 | 29.5 | 32 | 16 | M10 | 30 | 61 |
| EV153-02110005 | 95 | 109 | 26.5 | 51.5 | 34 | 40 | 18 | M12 | 50 | 85 |
