材料及表面处理 | 玻纤加固PA，黑灰色，亚光饰面 |
装配 | 圆柱形盲孔带黄铜加固横向孔或方形盲孔带横向固定螺钉 |

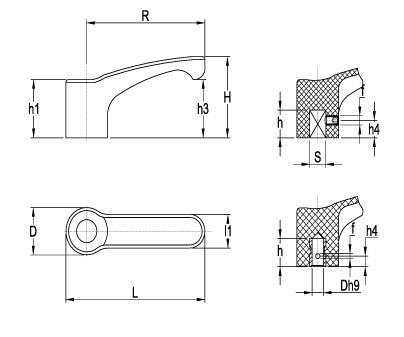

| 零件号 | R | L | D | H | h1 | h3 | l1 | h4 | f | s H10 | d H9 | h | 重量[g] |
| EV153-02100005 | 44 | 52 | 15.5 | 26.5 | 19 | 19 | 11 | 7 | M4 | 5x5 | - | 15 | 5 |
| EV153-02100006 | 63 | 73.5 | 19 | 35 | 24.5 | 26.5 | 13.5 | 8 | M4 | 6x6 | 20 | 11 | |
| EV153-02100007 | 78 | 90.5 | 23 | 42 | 29.5 | 32 | 16 | 9 | M5 | 8x8 | 25 | 31 | |
| EV153-02100008 | 95 | 109 | 26.5 | 51.5 | 34 | 40 | 18 | 10 | M5 | 10x10 | 30 | 37 | |
| EV153-02100009 | 44 | 52 | 15.5 | 26.5 | 19 | 19 | 11 | 7 | 3 | - | 6 | 15 | 5 |
| EV153-02100010 | 63 | 73.5 | 19 | 35 | 24.5 | 26.5 | 13.5 | 8 | 4 | 8 | 20 | 11 | |
| EV153-02100011 | 78 | 90.5 | 23 | 42 | 29.5 | 32 | 16 | 9 | 4 | 10 | 25 | 31 | |
| EV153-02100012 | 95 | 109 | 26.5 | 51.5 | 34 | 40 | 18 | 10 | 5 | 12 | 30 | 37 |
