可调节手柄 EV153-0209-上海义文工业五金

材料及表面处理

零件号	材料	表面处理
柄身	玻纤加固PA	黑色，亚光
紧固元件	玻纤加固PA	黑色滚花
固定螺钉	钢质	黑色氧化
复位弹簧	AISI不锈钢	-

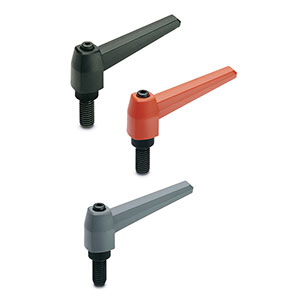

注意	另有多色柄身可选
	更多规格请咨询我司营业人员
装配	钢质螺杆，黑色氧化涂层处理

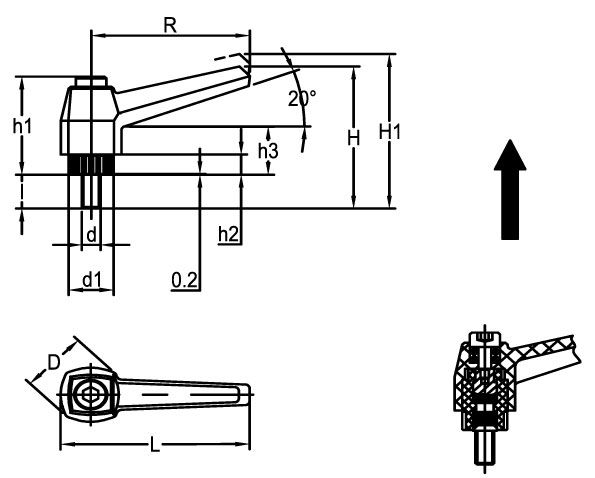

零件号	R	L	D	H	H₁	h₁	h₂	h₃	d₁	d	l	齿数z	重量[g]
EV153-02090001	42	50	18	32	36.5	29	6	14	12	M5	10	18	15
EV153-02090002	42	50	18	32	36.5	29	6	14	12	M5	16	18	16
EV153-02090003	42	50	18	32	36.5	29	6	14	12	M5	20	18	17
EV153-02090004	42	50	18	32	36.5	29	6	14	12	M6	10	18	16
EV153-02090005	42	50	18	32	36.5	29	6	14	12	M6	16	18	17
EV153-02090006	42	50	18	32	36.5	29	6	14	12	M6	20	18	18
EV153-02090007	42	50	18	32	36.5	29	6	14	12	M6	25	18	19
EV153-02090008	42	50	18	32	36.5	29	6	14	12	M6	30	18	20
EV153-02090009	42	50	18	32	36.5	29	6	14	12	M6	40	18	21
EV153-02090010	42	50	18	32	36.5	29	6	14	12	M8	20	18	20
EV153-02090011	63	73	23	43	47	36	8	17	15	M6	10	20	31
EV153-02090012	63	73	23	43	47	36	8	17	15	M6	16	20	32
EV153-02090013	63	73	23	43	47	36	8	17	15	M6	20	20	33
EV153-02090014	63	73	23	43	47	36	8	17	15	M6	25	20	34
EV153-02090015	63	73	23	43	47	36	8	17	15	M6	30	20	35
EV153-02090016	63	73	23	43	47	36	8	17	15	M6	35	20	35
EV153-02090017	63	73	23	43	47	36	8	17	15	M6	40	20	36
EV153-02090018	63	73	23	43	47	36	8	17	15	M8	16	20	34
EV153-02090019	63	73	23	43	47	36	8	17	15	M8	20	20	35
EV153-02090020	63	73	23	43	47	36	8	17	15	M8	25	20	37
EV153-02090021	63	73	23	43	47	36	8	17	15	M8	30	20	39
EV153-02090022	63	73	23	43	47	36	8	17	15	M8	32	20	40
EV153-02090023	63	73	23	43	47	36	8	17	15	M8	35	20	41
EV153-02090024	63	73	23	43	47	36	8	17	15	M8	40	20	43
EV153-02090025	63	73	23	43	47	36	8	17	15	M8	45	20	45
EV153-02090026	63	73	23	43	47	36	8	17	15	M8	50	20	47
EV153-02090027	63	73	23	43	47	36	8	17	15	M8	60	20	51
EV153-02090028	63	73	23	43	47	36	8	17	15	M10	40	20	52
EV153-02090029	80	92	28	54	59.5	45	10	22	19	M8	70	24	85
EV153-02090030	80	92	28	54	59.5	45	10	22	19	M10	16	24	70
EV153-02090031	80	92	28	54	59.5	45	10	22	19	M10	20	24	72
EV153-02090032	80	92	28	54	59.5	45	10	22	19	M10	25	24	74
EV153-02090033	80	92	28	54	59.5	45	10	22	19	M10	30	24	77
EV153-02090034	80	92	28	54	59.5	45	10	22	19	M10	32	24	78
EV153-02090035	80	92	28	54	59.5	45	10	22	19	M10	35	24	80
EV153-02090036	80	92	28	54	59.5	45	10	22	19	M10	40	24	82
EV153-02090037	80	92	28	54	59.5	45	10	22	19	M10	50	24	87
EV153-02090038	80	92	28	54	59.5	45	10	22	19	M10	60	24	92
EV153-02090039	80	92	28	54	59.5	45	10	22	19	M10	70	24	97
EV153-02090040	80	92	28	54	59.5	45	10	22	19	M12	20	24	76
EV153-02090041	80	92	28	54	59.5	45	10	22	19	M12	25	24	80
EV153-02090042	80	92	28	54	59.5	45	10	22	19	M12	30	24	84
EV153-02090043	80	92	28	54	59.5	45	10	22	19	M12	35	24	88
EV153-02090044	80	92	28	54	59.5	45	10	22	19	M12	40	24	92
EV153-02090045	80	92	28	54	59.5	45	10	22	19	M12	45	24	92
EV153-02090046	80	92	28	54	59.5	45	10	22	19	M12	50	24	100
EV153-02090047	80	92	28	54	59.5	45	10	22	19	M12	60	24	108
EV153-02090048	80	92	28	54	59.5	45	10	22	19	M12	70	24	116
EV153-02090049	80	92	28	54	59.5	45	10	22	19	M12	80	24	118
EV153-02090050	80	92	28	54	59.5	45	10	22	19	M14	40	24	153
EV153-02090051	100	114	33	65	70.5	53	12	25	25	M12	30	28	138
EV153-02090052	100	114	33	65	70.5	53	12	25	25	M12	50	28	150
EV153-02090053	100	114	33	65	70.5	53	12	25	25	M12	70	28	162
EV153-02090054	100	114	33	65	70.5	53	12	25	25	M14	30	28	142
EV153-02090055	100	114	33	65	70.5	53	12	25	25	M14	35	28	147
EV153-02090056	100	114	33	65	70.5	53	12	25	25	M14	50	28	162
EV153-02090057	100	114	33	65	70.5	53	12	25	25	M14	70	28	182
EV153-02090058	100	114	33	65	70.5	53	12	25	25	M16	30	28	149
EV153-02090059	100	114	33	65	70.5	53	12	25	25	M16	50	28	177
EV153-02090060	100	114	33	65	70.5	53	12	25	25	M16	70	28	205
