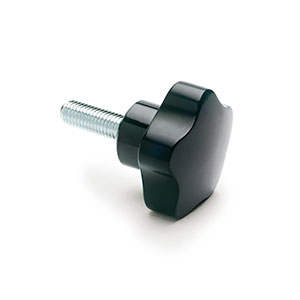

义文机电凸轮式旋钮 EV154-0205参数信息

300

材料及表面处理	酚醛基（PF）Duroplast热固性塑料，黑色光亮
装配	镀锌钢螺杆，带倒角平头
特点	独特的五瓣凸出外形
	实心体，可防止不良残余物的堆积
注意	另有同规格不锈钢螺杆可供选购，详情请联系我司营业人员

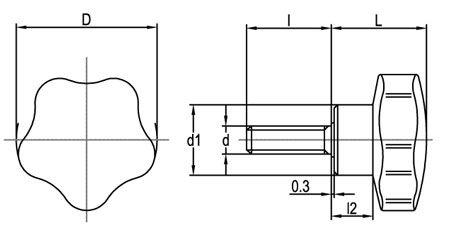

零件号	D	L	d₁	l₂	d	l	重量[g]
EV154-02050001	25	21	15	9	M5	10	11
EV154-02050002					M5	16	12
EV154-02050003					M6	10	10
EV154-02050004					M6	16	12
EV154-02050005					M6	20	14
EV154-02050006					M6	30	18
EV154-02050007	32	23	19	11	M6	10	17
EV154-02050008					M6	16	18
EV154-02050009					M6	20	20
EV154-02050010					M6	35	25
EV154-02050011					M8	20	24
EV154-02050012					M8	30	27
EV154-02050013					M8	40	29
EV154-02050014	40	27	21	12	M6	10	28
EV154-02050015					M6	20	30
EV154-02050016					M6	30	32
EV154-02050017					M8	16	35
EV154-02050018					M8	25	38
EV154-02050019					M8	35	40
EV154-02050020					M8	45	43
EV154-02050021	50	33	25	14	M8	16	52
EV154-02050022					M8	20	53
EV154-02050023					M8	25	55
EV154-02050024					M8	30	56
EV154-02050025					M8	40	60
EV154-02050026					M10	20	63
EV154-02050027					M10	30	66
EV154-02050028					M10	40	70
EV154-02050029					M10	50	73
EV154-02050030	60	37	27	17	M10	20	87
EV154-02050031					M10	30	92
EV154-02050032					M10	40	98
EV154-02050033					M10	50	101
EV154-02050034					M12	25	105
EV154-02050035					M12	30	110
EV154-02050036					M12	40	118
EV154-02050037					M12	50	128
EV154-02050038	70	44	30	20	M12	30	140
EV154-02050039					M12	50	160
EV154-02050040					M12	60	165
EV154-02050041					M12	70	175
EV154-02050042					M14	50	180
EV154-02050043					M14	70	200
EV154-02050044	85	55	35	30	M16	50	290
