材料 | 自然色UL94 V2 尼龙6/6 |

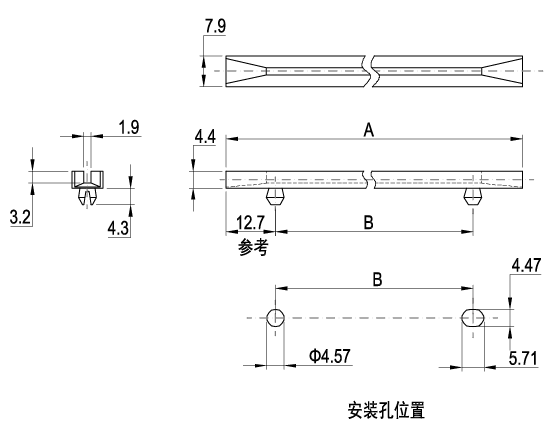

| 零件号 | A参考 | B | 适合PCB厚度 | 安装孔板材厚度 | 标准包装数量 |
| EV235-22050001 | 63.5 | 38.1 | 1.6 | 1.2 - 2.3 | 500 |
| EV235-22050002 | 76.2 | 50.8 | 1.6 | 1.2 - 2.3 | 500 |
| EV235-22050003 | 88.9 | 63.5 | 1.6 | 1.2 - 2.3 | 500 |
| EV235-22050004 | 101.6 | 76.2 | 1.6 | 1.2 - 2.3 | 500 |
| EV235-22050005 | 114.3 | 88.9 | 1.6 | 1.2 - 2.3 | 500 |
| EV235-22050006 | 127 | 101.6 | 1.6 | 1.2 - 2.3 | 500 |
| EV235-22050007 | 139.7 | 114.3 | 1.6 | 1.2 - 2.3 | 500 |
| EV235-22050008 | 152.4 | 127 | 1.6 | 1.2 - 2.3 | 500 |
| EV235-22050009 | 164.1 | 137.7 | 1.6 | 1.2 - 2.3 | 500 |
| EV235-22050010 | 177.8 | 152.4 | 1.6 | 1.2 - 2.3 | 500 |
| EV235-22050011 | 190.5 | 165.1 | 1.6 | 1.2 - 2.3 | 500 |
| EV235-22050012 | 203.2 | 177.8 | 1.6 | 1.2 - 2.3 | 500 |
