材料 | 黑色尼龙6/6 |

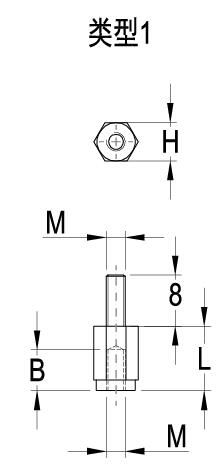

| 类型1 公螺纹/母螺纹 | M 螺纹 | 尺寸 (mm) | 标准包装数量 | ||
| 零件号 | L | H | B | ||
| EV251-22620001 | M2.5 | 10 | 5 | 8 | 500 |
| EV251-22620002 | M2.5 | 15 | 5 | 10 | 500 |
| EV251-22620003 | M2.5 | 20 | 5 | 10 | 500 |
| EV251-22620004 | M2.5 | 25 | 5 | 10 | 500 |
| EV251-22620005 | M3 | 10 | 5.5 | 8 | 500 |
| EV251-22620006 | M3 | 15 | 5.5 | 10 | 500 |
| EV251-22620007 | M3 | 20 | 5.5 | 10 | 500 |
| EV251-22620008 | M3 | 25 | 5.5 | 10 | 500 |
| EV251-22620009 | M3 | 30 | 5.5 | 10 | 500 |
| EV251-22620010 | M3 | 35 | 5.5 | 10 | 500 |
| EV251-22620011 | M3 | 5 | 6 | 3 | 500 |
| EV251-22620012 | M3 | 10 | 6 | 8 | 500 |
| EV251-22620013 | M3 | 15 | 6 | 10 | 500 |
| EV251-22620014 | M3 | 20 | 6 | 10 | 500 |
| EV251-22620015 | M3 | 25 | 6 | 10 | 500 |
| EV251-22620016 | M3 | 30 | 6 | 10 | 500 |
| EV251-22620017 | M3 | 35 | 6 | 10 | 500 |
| EV251-22620018 | M3 | 5 | 8 | 3 | 500 |
| EV251-22620019 | M3 | 10 | 8 | 8 | 500 |
| EV251-22620020 | M3 | 15 | 8 | 10 | 500 |
| EV251-22620021 | M3 | 20 | 8 | 10 | 500 |
| EV251-22620022 | M3 | 25 | 8 | 10 | 500 |
| EV251-22620023 | M3 | 30 | 8 | 10 | 500 |
| EV251-22620024 | M3 | 35 | 8 | 10 | 500 |
| EV251-22620025 | M4 | 5 | 8 | 3 | 500 |
| EV251-22620026 | M4 | 10 | 8 | 8 | 500 |
| EV251-22620027 | M4 | 15 | 8 | 10 | 500 |
| EV251-22620028 | M4 | 20 | 8 | 10 | 500 |
| EV251-22620029 | M4 | 25 | 8 | 10 | 500 |
| EV251-22620030 | M4 | 30 | 8 | 10 | 500 |
| EV251-22620031 | M4 | 35 | 8 | 10 | 500 |
| EV251-22620032 | M5 | 10 | 10 | 8 | 500 |
| EV251-22620033 | M5 | 15 | 10 | 10 | 500 |
| EV251-22620034 | M5 | 20 | 10 | 10 | 500 |
| EV251-22620035 | M5 | 25 | 10 | 10 | 500 |
| EV251-22620036 | M5 | 30 | 10 | 10 | 500 |
| EV251-22620037 | M5 | 35 | 10 | 10 | 500 |
| EV251-22620056 | M3 | 9 | 6 | 6 | 500 |

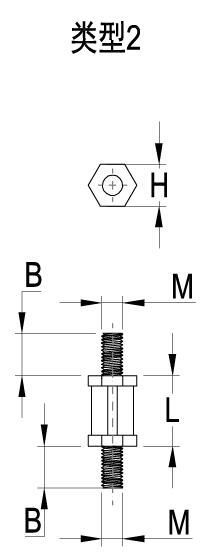

| 类型2 公螺纹/公螺纹 | M 螺纹 | 尺寸 (mm) | 标准包装数量 | ||
| 义文零件号 | L | H | B | ||
| EV251-22620038 | M2.5 | 5 | 5 | 6 | 500 |
| EV251-22620039 | M2.5 | 8 | 5 | 6 | 500 |
| EV251-22620040 | M2.5 | 10 | 5 | 6 | 500 |
| EV251-22620041 | M2.5 | 12 | 5 | 6 | 500 |
| EV251-22620042 | M2.5 | 15 | 5 | 6 | 500 |
| EV251-22620043 | M2.5 | 20 | 5 | 6 | 500 |
| EV251-22620044 | M3 | 5 | 6 | 6 | 500 |
| EV251-22620045 | M3 | 8 | 6 | 6 | 500 |
| EV251-22620046 | M3 | 10 | 6 | 6 | 500 |
| EV251-22620047 | M3 | 12 | 6 | 6 | 500 |
| EV251-22620048 | M3 | 15 | 6 | 6 | 500 |
| EV251-22620049 | M3 | 20 | 6 | 6 | 500 |
| EV251-22620050 | M4 | 5 | 6 | 6.4 | 500 |
| EV251-22620051 | M4 | 8 | 6 | 6.4 | 500 |
| EV251-22620052 | M4 | 10 | 6 | 6.4 | 500 |
| EV251-22620053 | M4 | 12 | 6 | 6.4 | 500 |
| EV251-22620054 | M4 | 15 | 6 | 6.4 | 500 |
| EV251-22620055 | M4 | 20 | 6 | 6.4 | 500 |
