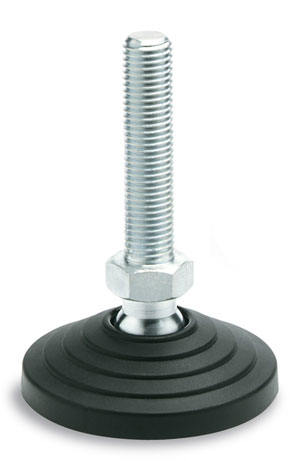

| 注意 | 另有同规格不带防滑盘样式可供选择。 |
| 可另行订购镀锌钢螺母 |
| 特点 | 带摆动功能，可进行约15°的摆动。 |
| 特殊构造的底座和防滑盘配置，确保了装配更加牢固，可避免该元件在受到强烈冲击，或者因底盘与地面粘连，发生分离现象。 |
材料及表面处理
| 零件名 | 材料 | 表面处理 |
| 底座 | 聚酰胺基PA | 黑色，亚光饰面 |
| 球头关节螺杆 | 钢 | 镀锌 |
| 防滑盘 | 合成橡胶NBR | - |

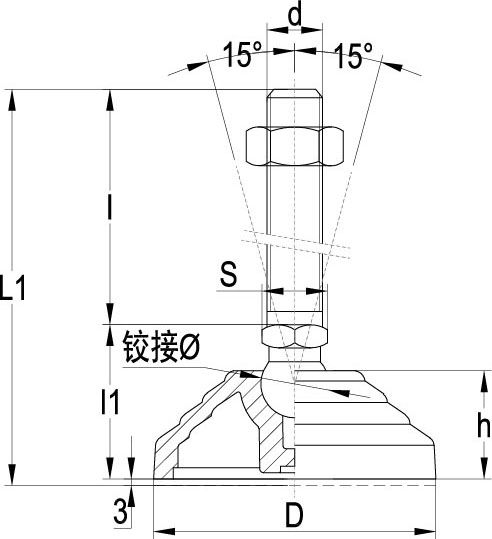

| 零件号 | L1 | l | d | S | l1 | 铰接Ø | 最大静载荷[N] | D | 重量[g] |
| EV175-02020001 | 79 | 43 | M8 | 14 | 33 | 14 | 14000 | 60 | 81 |
| EV175-02020002 | 104 | 68 | 93 | ||||||
| EV175-02020003 | 79 | 43 | M10 | 14 | 90 | ||||
| EV175-02020004 | 104 | 68 | 102 | ||||||
| EV175-02020005 | 134 | 98 | 116 | ||||||
| EV175-02020006 | 79 | 43 | M12 | 14 | 100 | ||||
| EV175-02020007 | 104 | 68 | 117 | ||||||
| EV175-02020008 | 134 | 98 | 138 | ||||||
| EV175-02020009 | 104 | 68 | M16 | 16 | 161 | ||||
| EV175-02020010 | 144 | 108 | 213 | ||||||
| EV175-02020011 | 184 | 148 | 265 | ||||||
| EV175-02020012 | 204 | 168 | 291 | ||||||
| EV175-02020013 | 104 | 58 | M16 | 24 | 43 | 24 | 18000 | 224 | |
| EV175-02020014 | 144 | 98 | 275 | ||||||
| EV175-02020015 | 184 | 138 | 325 | ||||||
| EV175-02020016 | 204 | 158 | 352 | ||||||
| EV175-02020017 | 144 | 98 | M20 | 24 | 345 | ||||
| EV175-02020018 | 184 | 138 | 424 | ||||||
| EV175-02020019 | 204 | 158 | 463 | ||||||
| EV175-02020020 | 244 | 198 | 546 | ||||||
| EV175-02020021 | 144 | 98 | M24 | 24 | 443 | ||||
| EV175-02020022 | 204 | 158 | 615 | ||||||
| EV175-02020023 | 244 | 198 | 733 | ||||||
| EV175-02020024 | 74 | 43 | M8 | 14 | 28 | 14 | 14000 | 70 | 80 |
| EV175-02020025 | 99 | 68 | 92 | ||||||
| EV175-02020026 | 74 | 43 | M10 | 14 | 89 | ||||
| EV175-02020027 | 99 | 68 | 101 | ||||||
| EV175-02020028 | 129 | 98 | 115 | ||||||
| EV175-02020029 | 74 | 43 | M12 | 14 | 99 | ||||
| EV175-02020030 | 99 | 68 | 116 | ||||||
| EV175-02020031 | 129 | 98 | 137 | ||||||
| EV175-02020032 | 99 | 68 | M16 | 16 | 160 | ||||
| EV175-02020033 | 139 | 108 | 212 | ||||||
| EV175-02020034 | 179 | 148 | 264 | ||||||
| EV175-02020035 | 199 | 168 | 290 | ||||||
| EV175-02020036 | 79 | 43 | M8 | 14 | 33 | 14 | 16000 | 80 | 109 |
| EV175-02020037 | 104 | 68 | 121 | ||||||
| EV175-02020038 | 79 | 43 | M10 | 14 | 118 | ||||
| EV175-02020039 | 104 | 68 | 130 | ||||||
| EV175-02020040 | 134 | 98 | 144 | ||||||
| EV175-02020041 | 79 | 43 | M12 | 14 | 128 | ||||
| EV175-02020042 | 104 | 68 | 145 | ||||||
| EV175-02020043 | 134 | 98 | 166 | ||||||
| EV175-02020044 | 104 | 68 | M16 | 16 | 189 | ||||
| EV175-02020045 | 144 | 108 | 241 | ||||||
| EV175-02020046 | 184 | 148 | 293 | ||||||
| EV175-02020047 | 204 | 168 | 319 | ||||||
| EV175-02020048 | 104 | 58 | M16 | 24 | 43 | 24 | 18000 | 251 | |
| EV175-02020049 | 144 | 98 | 302 | ||||||
| EV175-02020050 | 184 | 138 | 352 | ||||||
| EV175-02020051 | 204 | 158 | 379 | ||||||
| EV175-02020052 | 144 | 98 | M20 | 24 | 372 | ||||
| EV175-02020053 | 184 | 138 | 451 | ||||||
| EV175-02020054 | 204 | 158 | 490 | ||||||
| EV175-02020055 | 244 | 198 | 573 | ||||||
| EV175-02020056 | 144 | 98 | M24 | 24 | 470 | ||||
| EV175-02020057 | 204 | 158 | 642 | ||||||
| EV175-02020058 | 244 | 198 | 760 | ||||||
| EV175-02020059 | 79 | 43 | M8 | 14 | 33 | 14 | 18000 | 100 | 146 |
| EV175-02020060 | 104 | 68 | 158 | ||||||
| EV175-02020061 | 79 | 43 | M10 | 14 | 155 | ||||
| EV175-02020062 | 104 | 68 | 167 | ||||||
| EV175-02020063 | 134 | 98 | 181 | ||||||
| EV175-02020064 | 79 | 43 | M12 | 14 | 165 | ||||
| EV175-02020065 | 104 | 68 | 182 | ||||||
| EV175-02020066 | 134 | 98 | 203 | ||||||
| EV175-02020067 | 104 | 68 | M16 | 16 | 226 | ||||
| EV175-02020068 | 144 | 108 | 278 | ||||||
| EV175-02020069 | 184 | 148 | 330 | ||||||
| EV175-02020070 | 204 | 168 | 356 | ||||||
| EV175-02020071 | 104 | 58 | M16 | 24 | 43 | 24 | 25000 | 305 | |
| EV175-02020072 | 144 | 98 | 356 | ||||||
| EV175-02020073 | 184 | 138 | 406 | ||||||
| EV175-02020074 | 204 | 158 | 433 | ||||||
| EV175-02020075 | 144 | 98 | M20 | 24 | 426 | ||||
| EV175-02020076 | 184 | 138 | 505 | ||||||
| EV175-02020077 | 204 | 158 | 544 | ||||||
| EV175-02020078 | 244 | 198 | 627 | ||||||
| EV175-02020079 | 144 | 98 | M24 | 24 | 524 | ||||
| EV175-02020080 | 204 | 158 | 696 | ||||||
| EV175-02020081 | 244 | 198 | 814 | ||||||
| EV175-02020082 | 128 | 58 | M16 | 24 | 67 | 24 | 28000 | 125 | 512 |
| EV175-02020083 | 168 | 98 | 563 | ||||||
| EV175-02020084 | 208 | 138 | 613 | ||||||
| EV175-02020085 | 228 | 158 | 640 | ||||||
| EV175-02020086 | 168 | 98 | M20 | 24 | 633 | ||||
| EV175-02020087 | 208 | 138 | 712 | ||||||
| EV175-02020088 | 228 | 158 | 751 | ||||||
| EV175-02020089 | 268 | 198 | 834 | ||||||
| EV175-02020090 | 168 | 98 | M24 | 24 | 731 | ||||
| EV175-02020091 | 228 | 158 | 903 | ||||||
| EV175-02020092 | 268 | 198 | 1021 |
