材料 | 腈橡胶(NBR)70, 氯橡胶(FPM)75 |

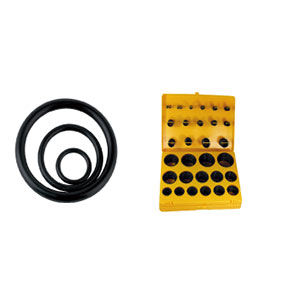

欧标O型环套件
| 零件号 | 材质 |
| EV276-22030001 | NBR70 |
| EV276-22030002 | FPM75 |
单个零件
| 零件号 | 尺寸（mm） | 每套数量 | ||
| NBR | FPM | 内径 | 横截面 | |
| EV276-22030003 | EV276-22030033 | 3 | 2 | 18 |
| EV276-22030004 | EV276-22030034 | 4 | 2 | 18 |
| EV276-22030005 | EV276-22030035 | 5 | 2 | 18 |
| EV276-22030006 | EV276-22030036 | 6 | 2 | 18 |
| EV276-22030007 | EV276-22030037 | 7 | 2 | 17 |
| EV276-22030008 | EV276-22030038 | 8 | 2 | 17 |
| EV276-22030009 | EV276-22030039 | 10 | 2 | 17 |
| EV276-22030010 | EV276-22030040 | 10 | 2.5 | 14 |
| EV276-22030011 | EV276-22030041 | 11 | 2.5 | 14 |
| EV276-22030012 | EV276-22030042 | 12 | 2.5 | 14 |
| EV276-22030013 | EV276-22030043 | 14 | 2.5 | 14 |
| EV276-22030014 | EV276-22030044 | 16 | 2.5 | 14 |
| EV276-22030015 | EV276-22030045 | 17 | 2.5 | 14 |
| EV276-22030016 | EV276-22030046 | 19 | 2.5 | 14 |
| EV276-22030017 | EV276-22030047 | 19 | 3 | 12 |
| EV276-22030018 | EV276-22030048 | 20 | 3 | 12 |
| EV276-22030019 | EV276-22030049 | 22 | 3 | 12 |
| EV276-22030020 | EV276-22030050 | 24 | 3 | 12 |
| EV276-22030021 | EV276-22030051 | 25 | 3 | 12 |
| EV276-22030022 | EV276-22030052 | 27 | 3 | 12 |
| EV276-22030023 | EV276-22030053 | 28 | 3 | 12 |
| EV276-22030024 | EV276-22030054 | 30 | 3 | 12 |
| EV276-22030025 | EV276-22030055 | 32 | 3 | 12 |
| EV276-22030026 | EV276-22030056 | 33 | 3 | 12 |
| EV276-22030027 | EV276-22030057 | 35 | 3 | 12 |
| EV276-22030028 | EV276-22030058 | 36 | 3 | 12 |
| EV276-22030029 | EV276-22030059 | 38 | 3 | 12 |
| EV276-22030030 | EV276-22030060 | 38 | 4 | 9 |
| EV276-22030031 | EV276-22030061 | 42 | 4 | 9 |
| EV276-22030032 | EV276-22030062 | 45 | 4 | 9 |
