材料 | 腈橡胶 (NBR)70, 氟橡胶 (FPM)75 |

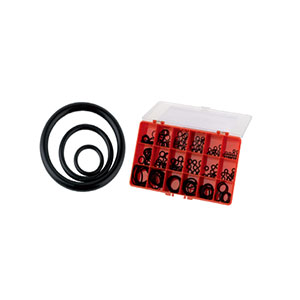

公制O型密封圈
| 零件号 | 材质 |
| EV276-22020037 | NBR70 |
| EV276-22020038 | FPM75 |
单个零件
| 零件号 | 尺寸（mm） | 每套数量 | ||
| NBR | FPM | 内径 | 横截面 | |
| EV276-22020001 | EV276-22020019 | 4.1 | 1.6 | 15 |
| EV276-22020002 | EV276-22020020 | 6.1 | 1.6 | 15 |
| EV276-22020003 | EV276-22020021 | 8.1 | 1.6 | 15 |
| EV276-22020004 | EV276-22020022 | 10.1 | 1.6 | 15 |
| EV276-22020005 | EV276-22020023 | 12.1 | 1.6 | 15 |
| EV276-22020006 | EV276-22020024 | 14.1 | 1.6 | 15 |
| EV276-22020007 | EV276-22020025 | 5.6 | 2.4 | 10 |
| EV276-22020008 | EV276-22020026 | 6.6 | 2.4 | 10 |
| EV276-22020009 | EV276-22020027 | 7.6 | 2.4 | 10 |
| EV276-22020010 | EV276-22020028 | 9.6 | 2.4 | 10 |
| EV276-22020011 | EV276-22020029 | 11.6 | 2.4 | 10 |
| EV276-22020012 | EV276-22020030 | 14.6 | 2.4 | 10 |
| EV276-22020013 | EV276-22020031 | 19.5 | 3 | 6 |
| EV276-22020014 | EV276-22020032 | 24.5 | 3 | 6 |
| EV276-22020015 | EV276-22020033 | 26.5 | 3 | 6 |
| EV276-22020016 | EV276-22020034 | 31.5 | 3 | 6 |
| EV276-22020017 | EV276-22020035 | 32.5 | 3 | 6 |
| EV276-22020018 | EV276-22020036 | 39.5 | 3 | 6 |
