材料 | LDPE |

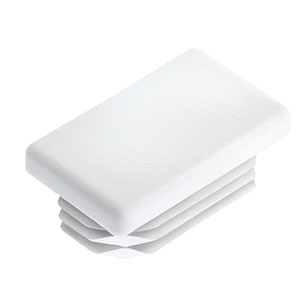

特点 | 尤其适用于绝大数常用规格尺寸的矩形管塞 |
| 零件号 | 尺寸（mm） | ||||||

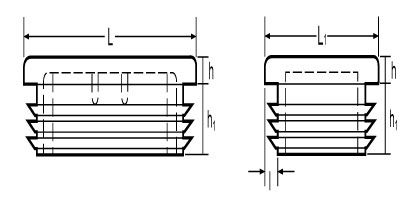

| 黑色 | 白色 | L×L1 (mm） | L×L1 (ins) | h (mm) | h1 (mm) | l (mm) | l (规格) |
| 麻面 | 麻面 | ||||||
| EV172-22220001 | - | 25x12 | - | 3 | 11.5 | 1.0-2.0 | - |
| EV172-22220002 | EV172-22220057 | 38.1x25.4 | 1 1/2x1 | 5 | 11.5 | 1.0-3.0 | - |
| EV172-22220003 | - | 40x15 | - | 5 | 11.57 | 1.5-2.0 | - |
| EV172-22220004 | EV172-22220058 | 150x50 | - | 6 | 28 | 2.0-4.0 | - |
| EV172-22220005 | EV172-22220059 | 150x100 | - | 7 | 27.5 | 3.0-8.0 | - |
| EV172-22220007 | - | 20x10 | - | 3 | 11.5 | 0.8-2.0 | - |
| EV172-22220008 | - | 25x10 | - | 3 | 11.5 | 0.8-2.0 | - |
| EV172-22220009 | - | 25x15 | - | 5 | 11.5 | 0.8-2.5 | - |
| EV172-22220010 | - | 25x20 | - | 5 | 11.5 | 1.0-3.0 | - |
| EV172-22220011 | - | 25.4x12.7 | 1 1/2x1 | 3 | 11.5 | 0.8-2.0 | 14-20 |
| EV172-22220012 | - | 30x10 | - | 3 | 11.5 | 0.75-2.0 | - |
| EV172-22220013 | - | 30x15 | - | 5 | 11.5 | 1.0-3.0 | - |
| EV172-22220014 | - | 30x20 | - | 5 | 11.5 | 1.0-3.0 | - |
| EV172-22220015 | - | 30x25 | - | 5 | 13.5 | 1.5-2.0 | - |
| EV172-22220016 | - | 34.9x15.9 | 1 3/8x5/8 | 4 | 11.5 | 1.0-3.0 | 11-20 |
| EV172-22220017 | - | 35x10 | - | 3.5 | 11.5 | 0.75-2.0 | - |
| EV172-22220018 | EV172-22220060 | 35x20 | - | 5 | 11.5 | 1.0-3.0 | - |
| EV172-22220019 | - | 38.1x19.1 | 1 1/2x3/4 | 5 | 11.5 | 1.0-3.0 | 10-18 |
| EV172-22220020 | - | 40x20 | - | 5 | 11.5 | 1.0-3.0 | - |
| EV172-22220021 | EV172-22220061 | 40x25 | - | 5 | 11.5 | 1.0-3.0 | - |
| EV172-22220022 | - | 40x30 | - | 5 | 11.5 | 1.0-3.0 | - |
| EV172-22220023 | - | 50x20 | - | 5 | 11.5 | 1.0-3.0 | - |
| EV172-22220024 | - | 50x25 | - | 5 | 11.5 | 1.0-3.0 | - |
| EV172-22220025 | - | 50x30 | - | 5 | 11.5 | 1.0-3.0 | - |
| EV172-22220026 | - | 50.8x31.8 | 2x1 1/4 | 5 | 11.5 | 1.0-3.0 | 11-20 |
| EV172-22220027 | - | 50x40 | - | 5 | 12 | 1.5-2.0 | - |
| EV172-22220028 | - | 50.8x25.4 | 2x1 | 5 | 11.5 | 1.0-3.0 | 10-18 |
| EV172-22220029 | EV172-22220062 | 60x20 | - | 5 | 14.5 | 1.0-3.0 | - |
| EV172-22220030 | - | 60x25 | - | 5 | 11.5 | 3.0-4.5 | - |
| EV172-22220031 | EV172-22220063 | 60x30 | - | 5 | 14.5 | 2.0-4.0 | - |
| EV172-22220032 | - | 60x40 | - | 5 | 14.5 | 2.0-4.0 | - |
| EV172-22220033 | - | 70x25 | - | 5 | 17 | 1.0-2.0 | - |
| EV172-22220034 | - | 75x25 | - | 5 | 13 | 1.5-2.0 | - |
| EV172-22220035 | - | 76.2x38.1 | 3x1 1/2 | 6 | 14.5 | 2.0-4.0 | 8-14 |
| EV172-22220036 | EV172-22220064 | 75x50 | - | 6 | 22 | 2.0-4.0 | - |
| EV172-22220037 | - | 70x30 | - | 5.7 | 17.7 | 1.0-2.0 | - |
| EV172-22220038 | - | 70x50 | - | 5 | 14.5 | 2.0-5.0 | - |
| EV172-22220039 | - | 80x20 | - | 6 | 17.6 | 1.0-2.0 | - |
| EV172-22220040 | - | 80x25 | - | 5 | 14.5 | 1.0-2.0 | - |
| EV172-22220041 | - | 80x30 | - | 5 | 14.5 | 1.0-2.5 | - |
| EV172-22220042 | EV172-22220065 | 80x40 | - | 5 | 14.5 | 2.0-4.0 | - |
| EV172-22220043 | - | 80x50 | - | 5 | 22 | 2.0-4.0 | - |
| EV172-22220044 | - | 80x60 | - | 5 | 24 | 1.5-3.5 | - |
| EV172-22220045 | - | 90x50 | - | 6 | 21.5 | 2.0-4.5 | - |
| EV172-22220046 | - | 100x20 | - | 5 | 14.5 | 1.5-3.0 | - |
| EV172-22220047 | - | 100x25 | - | 5 | 14.5 | 1.5-3.0 | - |
| EV172-22220048 | - | 100x40 | - | 7.2 | 19 | 2.0-4.0 | - |
| EV172-22220049 | - | 100x50 | - | 8 | 18.5 | 2.0-4.0 | - |
| EV172-22220050 | - | 100x60 | - | 6 | 24.5 | 2.5-4.5 | - |
| EV172-22220051 | - | 100x80 | - | 6 | 24 | 3.0-5.0 | - |
| EV172-22220052 | - | 120x40 | - | 6 | 21.5 | 3.0-5.0 | - |
| EV172-22220053 | - | 120x50 | - | 6 | 21.5 | 3.0-5.5 | - |
| EV172-22220054 | EV172-22220066 | 120x60 | - | 6 | 22 | 2.0-4.0 | - |
| EV172-22220055 | - | 120x100 | - | 6 | 24 | 3.5-6.0 | - |
| 零件号 | 尺寸（mm） | ||||||

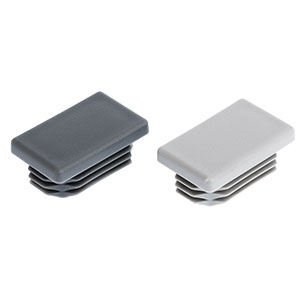

| 中灰色 | L×L1 (mm） | L×L1 (ins) | h (mm) | h1 (mm) | l (mm) | l (规格) | |
| 光面 | 麻面 | ||||||
| EV172-22220067 | - | 25x10 | - | 3 | 11.5 | 0.8-2.0 | |
| EV172-22220068 | - | 30x15 | - | 5 | 11.5 | 1.0-3.0 | - |
| - | - | 30x20 | - | 5 | 11.5 | 1.0-3.0 | - |
| - | EV172-22220074 | 34.9x15.9 | 1 3/8x5/8 | 4 | 11.5 | 1.0-3.0 | 11-20 |
| - | EV172-22220075 | 35x20 | - | 5 | 11.5 | 1.0-3.0 | - |
| - | EV172-22220076 | 38.1x19.1 | 1 1/2x3/4 | 5 | 11.5 | 1.0-3.0 | 10-18 |
| - | EV172-22220077 | 38.1x25.4 | 1 1/2x1 | 5 | 11.5 | 1.0-3.0 | 11-20 |
| - | EV172-22220078 | 40x20 | - | 5 | 11.5 | 1.0-3.0 | - |
| - | EV172-22220079 | 40x25 | - | 5 | 11.5 | 1.0-3.0 | - |
| EV172-22220069 | EV172-22220080 | 50x25 | - | 5 | 11.5 | 1.0-3.0 | - |
| - | EV172-22220081 | 50x30 | - | 5 | 11.5 | 1.0-3.0 | - |
| EV172-22220070 | EV172-22220082 | 50.8x25.4 | 2x1 | 5 | 11.5 | 1.0-3.0 | 10-18 |
| - | EV172-22220083 | 50.8x31.8 | 2x1 1/4 | 5 | 11.5 | 1.0-3.0 | 11-20 |
| - | EV172-22220084 | 60x20 | - | 5 | 14.5 | 1.0-3.0 | - |
| EV172-22220071 | - | 60x30 | - | 5 | 14.5 | 2.0-4.0 | - |
| EV172-22220072 | - | 60x40 | - | 5 | 14.5 | 1.0-3.0 | - |
| EV172-22220073 | - | 60x40 | - | 5 | 14.5 | 2.0-4.0 | - |
| - | EV172-22220085 | 75x50 | - | 6 | 22 | 2.0-4.0 | - |
| - | EV172-22220086 | 120x60 | - | 6 | 22 | 2.0-4.0 | - |
