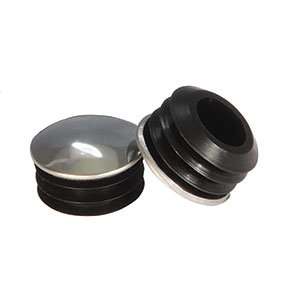

材料 | 黑色PE |
特点 | 镀铬装饰，外观更精美 |
肋式设计便于装配 |

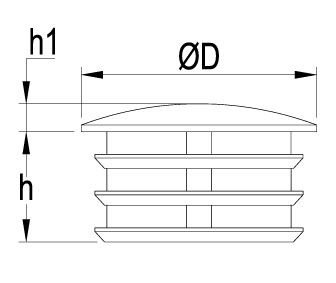

| 零件号 | 尺寸（mm） | |||
| 间距 | D | h | h1 | |
| EV172-22200001 | 1.5 | 13 | 8 | 2 |
| EV172-22200002 | 1.5 | 16 | 10 | 2 |
| EV172-22200003 | 1.5 | 18 | 10 | 2 |
| EV172-22200004 | 1.5 | 19 | 10 | 2 |
| EV172-22200005 | 1.5 | 20 | 10 | 3 |
| EV172-22200006 | 1.5 | 22 | 11 | 3 |
| EV172-22200007 | 1.5 | 25 | 15 | 3 |
| EV172-22200008 | 1.5 | 28 | 15 | 3 |
| EV172-22200009 | 1.5 | 30 | 16 | 3 |
| EV172-22200010 | 1.5 | 32 | 16 | 3 |
| EV172-22200011 | 1.5 | 35 | 16 | 3 |
| EV172-22200012 | 1.5 | 38 | 16 | 3 |
| EV172-22200013 | 1.5 | 40 | 16 | 3 |
| EV172-22200014 | 1.5 | 45 | 16 | 3 |
| EV172-22200015 | 1.5 | 50 | 12 | 3 |
| EV172-22200016 | 1.5 | 60 | 12 | 3 |
