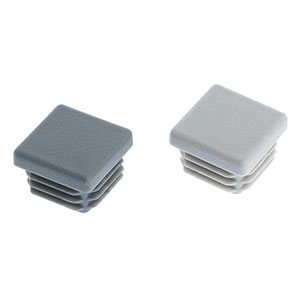

材料 | LDPE |
特点 | 外肋结构使装配方便，配合可靠 |
遮盖尖锐的管边 |

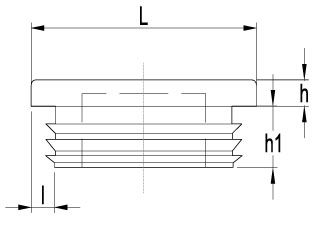

| 零件号 | 尺寸（mm） | |||||||
| 黑色 | 白色 | L (mm） | L (ins) | h (mm) | h1 (mm) | l (mm) | l (规格) | |
| 抛光 | 麻面 | 麻面 | ||||||
| - | EV172-22150006 | - | 12.7 | 1/2 | 4 | 11.5 | 0.8-2.0 | 14-20 |
| - | - | - | 13 | - | 5 | 11.5 | 0.8-2.0 | - |
| - | EV172-22150007 | EV172-22150034 | 15 | - | 4 | 11.5 | 0.8-2.0 | - |
| EV172-22150001 | EV172-22150008 | - | 16 | 5/8 | 5 | 11.5 | 0.8-2.5 | 12-20 |
| EV172-22150002 | - | - | 18 | - | 5 | 16.5 | 1.2-1.5 | - |
| - | EV172-22150009 | - | 19 | 3/4 | 5 | 11.5 | 0.8-2.5 | 10-12 |
| EV172-22150003 | EV172-22150010 | - | 20 | - | 5 | 11.5 | 0.8-2.5 | - |
| - | EV172-22150011 | - | 22 | 7/8 | 5 | 11.5 | 0.8-2.5 | 10-12 |
| EV172-22150004 | EV172-22150012 | - | 25 | - | 5 | 11.5 | 1.0-2.5 | - |
| - | EV172-22150013 | - | 25.4 | 1 | 5 | 11.5 | 1.0-2.5 | 12-20 |
| EV172-22150005 | - | - | 28.6 | 1 1/8 | 5 | 12.4 | 1.0-2.0 | 16-20 |
| - | EV172-22150014 | - | 30 | - | 5 | 11.5 | 1.0-3.0 | - |
| - | EV172-22150015 | EV172-22150035 | 32 | 1 1/4 | 5 | 11.5 | 1.0-3.0 | 10-18 |
| - | EV172-22150016 | - | 35 | 1 3/8 | 5 | 11.5 | 1.0-3.0 | 10-18 |
| - | EV172-22150017 | EV172-22150036 | 38 | 1 1/2 | 5 | 14.5 | 1.0-3.0 | 10-18 |
| - | EV172-22150018 | - | 40 | - | 5 | 14.5 | 1.0-3.0 | - |
| - | - | - | 44.4 | 1 3/4 | 4.7 | 15.7 | 1.0-2.0 | 14-18 |
| - | - | - | 44.4 | 1 3/4 | 4.7 | 15.1 | 2.0-3.0 | 10-14 |
| - | EV172-22150019 | - | 45 | - | 5 | 14.5 | 1.0-3.0 | - |
| - | EV172-22150020 | - | 50 | - | 5 | 14.5 | 1.0-3.0 | - |
| - | EV172-22150021 | - | 50 | - | 6.6 | 18.0 | 3.0-5.0 | - |
| - | EV172-22150022 | - | 50.8 | 2 | 5 | 14.5 | 1.0-3.0 | 10-18 |
| - | EV172-22150023 | - | 55 | - | 5 | 14.5 | 2.0-4.0 | - |
| - | EV172-22150024 | - | 60 | - | 5 | 14.5 | 1.0-3.0 | - |
| - | EV172-22150025 | - | 63.5 | 2 1/2 | 6 | 14.5 | 1.0-3.0 | 11-20 |
| - | EV172-22150026 | EV172-22150037 | 65 | - | 6 | 14.5 | 1.0-3.0 | - |
| - | EV172-22150027 | - | 70 | - | 6 | 22.0 | 2.0-4.0 | - |
| - | EV172-22150028 | EV172-22150038 | 75 | - | 6 | 22.0 | 2.0-4.0 | - |
| - | EV172-22150029 | - | 76.2 | 3 | 6 | 22.0 | 2.0-4.0 | 8-14 |
| - | EV172-22150030 | EV172-22150039 | 80 | - | 6 | 22.0 | 2.0-4.0 | - |
| - | EV172-22150031 | - | 100 | - | 7 | 22.0 | 2.0-4.0 | - |
| - | EV172-22150032 | - | 120 | - | 5 | 25.0 | 2.5-5.0 | - |
| EV172-22150061 | EV172-22150033 | - | 150 | - | 7 | 27.0 | 5.0-8.0 | - |
| 零件号 | 尺寸（mm） | ||||||
| 中灰色 | L (mm） | L (ins) | h (mm) | h1 (mm) | l (mm) | l (规格) | |
| 光面 | 麻面 | ||||||
| EV172-22150040 | - | 12.7 | 1/2 | 4 | 11.5 | 0.8-2.0 | 14-20 |
| - | EV172-22150048 | 15 | - | 4 | 11.5 | 0.8-2.0 | - |
| EV172-22150041 | - | 16 | 5/8 | 5 | 11.5 | 0.8-2.5 | 12-20 |
| EV172-22150042 | EV172-22150049 | 19 | 3/4 | 5 | 11.5 | 0.8-2.5 | 12-20 |
| - | EV172-22150050 | 20 | - | 5 | 11.5 | 0.8-2.5 | - |
| - | EV172-22150051 | 22 | 7/8 | 5 | 11.5 | 0.8-2.5 | 12-20 |
| - | EV172-22150052 | 25 | - | 5 | 11.5 | 1.0-2.5 | - |
| EV172-22150043 | EV172-22150053 | 25.4 | 1 | 5 | 11.5 | 1.0-2.5 | 12-20 |
| - | EV172-22150054 | 30 | - | 5 | 11.5 | 1.0-3.0 | - |
| - | EV172-22150055 | 32 | - | 5 | 11.5 | 1.0-3.0 | - |
| EV172-22150044 | EV172-22150056 | 38 | - | 5 | 14.5 | 1.0-3.0 | - |
| - | EV172-22150057 | 40 | - | 5 | 14.5 | 1.0-3.0 | - |
| - | - | 44.4 | 1 3/4 | 4.7 | 15.7 | 1.0-2.0 | 10-14 |
| EV172-22150045 | - | 45 | - | 5 | 14.5 | 1.0-3.0 | - |
| EV172-22150046 | EV172-22150058 | 50 | - | 5 | 14.5 | 1.0-3.0 | - |
| - | EV172-22150059 | 50.8 | 2 | 5 | 14.5 | 1.0-3.0 | 10-18 |
| EV172-22150047 | - | 60 | - | 5 | 24.3 | 1.0-3.0 | - |
| - | EV172-22150060 | 76.2 | 3 | 6 | 22.0 | 2.0-4.0 | 8-14 |
