绝缘台阶衬套 EV214-2213-上海义文机电有限公司

未标题-6

材料	自然色尼龙6/6
注意	更多尺寸可供选择，详情请联系我司营业人员

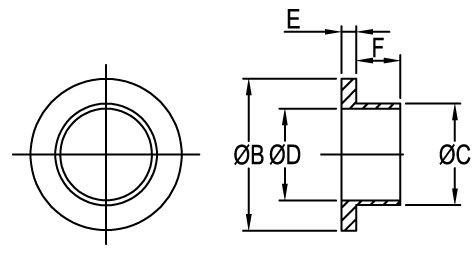

	零件号	适用螺纹	B	C	D	E	F
	EV214-22130001	M2	4.6	3	2.3	1.2	0.8
	EV214-22130002	M2	4.6	3	2.3	1.2	1.6
	EV214-22130003	M2	4.6	3	2.3	1.2	2.4
	EV214-22130004	M2.5	6	3.7	2.9	1.2	0.8
	EV214-22130005	M2.5	6	3.7	2.9	1.2	1.2
	EV214-22130006	M2.5	6	3.7	2.9	1.2	1.6
	EV214-22130007	M2.5	6.4	3.6	2.9	1.2	2.1
	EV214-22130008	M2.5	6	3.7	2.9	1.2	2.4
	EV214-22130009	M2.5	6	3.7	2.9	1.2	3.2
	EV214-22130010	M2.5	6	3.7	2.9	1.2	4
	EV214-22130011	M2.5	6	3.7	2.9	1.2	4.7
	EV214-22130012	M2.5	6	3.7	2.9	1.2	6.4
	EV214-22130013	M2.5	6	3.7	2.9	1.2	9.5
	EV214-22130014	M3.5	7.4	4.3	3.6	1.2	0.8
	EV214-22130015	M3.5	7.4	4.3	3.6	1.2	1.6
	EV214-22130016	M3.5	7.4	4.3	3.6	1.2	2.4
	EV214-22130017	M3.5	7.4	4.3	3.6	1.2	3.2
	EV214-22130018	M3.5	7.4	4.3	3.6	1.2	4.7
	EV214-22130019	M3.5	7.4	4.3	3.6	1.2	6.4
	EV214-22130020	M3.5	7.4	4.3	3.6	1.2	9.5
	EV214-22130021	M3.5	7.4	4.3	3.6	1.2	12.7
	EV214-22130022	M4	8.7	5.2	4.4	1.6	0.8
	EV214-22130023	M4	8.7	5.2	4.4	1.6	1.6
	EV214-22130024	M4	8.7	5.2	4.4	1.6	2.4
	EV214-22130025	M4	8.7	5.2	4.4	1.6	3.2
	EV214-22130026	M4	8.7	5.2	4.4	1.6	4.7
	EV214-22130027	M4	8.7	5.2	4.4	1.6	6.4
	EV214-22130028	M4	8.7	5.2	4.4	1.6	9.5
	EV214-22130029	M4	8.7	5.2	4.4	1.6	12.7
	EV214-22130030	M5	10.1	6.6	5.1	1.6	0.8
	EV214-22130031	M5	10.1	6.6	5.1	1.6	1.6
	EV214-22130032	M5	10.1	6.6	5.1	1.6	2.4
HOT	EV214-22130033	M5	10.1	6.6	5.1	1.6	3.2
	EV214-22130034	M5	10.1	6.6	5.1	1.6	4.7
	EV214-22130035	M5	10.1	6.6	5.1	1.6	6.4
	EV214-22130036	M5	10.1	6.6	5.1	1.6	9.5
	EV214-22130037	M5	10.1	6.6	5.1	1.6	12.7
	EV214-22130038	M6	13	7.9	6.6	1.7	0.8
	EV214-22130039	M6	13	7.9	6.6	1.7	1.6
	EV214-22130040	M6	13	7.9	6.6	1.7	2.4
	EV214-22130041	M6	13	7.9	6.6	1.7	4.7
	EV214-22130042	M6	13	7.9	6.6	1.7	6.4
	EV214-22130043	M6	13	7.9	6.6	1.7	9.5
	EV214-22130044	M6	13	7.9	6.6	1.7	12.7
	EV214-22130045	M8	15.7	9.1	8.1	1.6	2.4
	EV214-22130046	M8	15.7	9.1	8.1	1.6	4.7
	EV214-22130047	M8	15.7	9.1	8.1	1.6	6.4
