材料 | 尼龙6/6 |

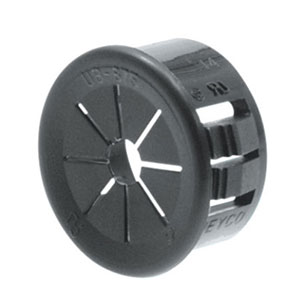

特点 | 柔软的百叶窗式调整片适用任何形状，直径3.2mm 到最大内径62.7mm |
注意 | 颜色可定制，详情请联系我司营业人员 |

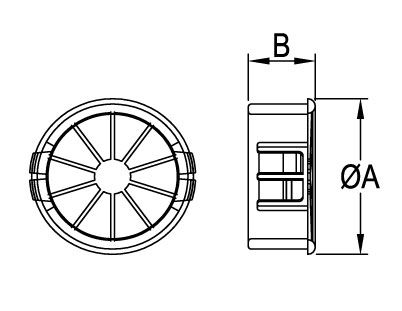

| 零件号 | 安装孔径 | 最大板材厚度 | A | B | 最大内径 | |
| 黑色 | 白色 | |||||
| EV214-23040001 | EV214-23040018 | 12.7 | 3.2 | 15.2 | 9.8 | 7.6 |
| EV214-23040002 | EV214-23040019 | 15.9 | 3.2 | 18.5 | 10.3 | 11.1 |
| EV214-23040003 | EV214-23040020 | 19.1 | 3.2 | 21.4 | 9.9 | 12.7 |
| EV214-23040004 | EV214-23040021 | 20.6 | 3.2 | 22.6 | 9.9 | 12.7 |
| EV214-23040005* | EV214-23040022* | 22.2 | 3.2 | 23.8 | 11.5 | 14.3 |
| EV214-23040006** | - | 22.2 | 3.2 | 23.8 | 11.5 | 14.3 |
| EV214-23040007 | EV214-23040023 | 25.4 | 3.2 | 27 | 11.2 | 19.1 |
| EV214-23040008 | EV214-23040024 | 27.8 | 3.2 | 29.5 | 11.5 | 20.6 |
| EV214-23040009 | EV214-23040025 | 30.2 | 3.2 | 31.8 | 11.5 | 24.1 |
| EV214-23040010 | EV214-23040026 | 31.8 | 3.2 | 33.4 | 11.5 | 25.8 |
| EV214-23040011 | EV214-23040027 | 34.9 | 3.2 | 37.8 | 11.5 | 25.4 |
| EV214-23040012 | - | 34.9 | 3.2 | 44.5 | 11.5 | 25.4 |
| EV214-23040013 | EV214-23040028 | 38.1 | 3.2 | 40.9 | 11.5 | 26.9 |
| EV214-23040014 | EV214-23040029 | 44.5 | 3.2 | 47.5 | 11.8 | 34.9 |
| EV214-23040015 | EV214-23040030 | 50.8 | 3.2 | 54 | 12.4 | 41.6 |
| EV214-23040016 | EV214-23040031 | 63.5 | 6.4 | 66.8 | 19.05 | 50 |
| EV214-23040017 | EV214-23040032 | 76.2 | 6.4 | 80 | 19.05 | 62.7 |
*适用于直径4.8 - 14.3的电缆，**适用于直径3.2 - 15.9的电缆
