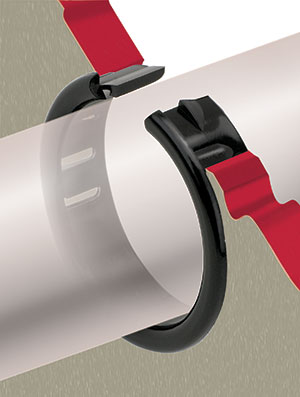

义文机电开口护线套 EV214-2207/2306参数信息

300

未标题-1

材料	黑色尼龙6/6 UL94V2

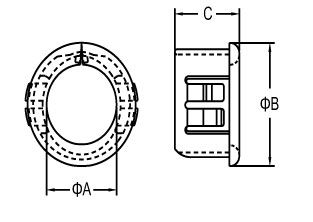

	零件号	安装孔径	最大面板厚度	A	B	C
	EV214-22070001	7.0	1.0	4.8	10.4	5.0
	EV214-22070002	13.0	1.5	9.2	16.2	5.3
	EV214-22070003	16.0	1.4	12.2	19.4	5.4
	EV214-22070004	19.0	1.5	14.3	22.7	5.7
	EV214-22070005	22.0	1.6	17.6	25.5	5.6
	EV214-22070006	24.0	1.2	19.5	27.0	5.3
	EV214-22070007	24.0	1.6	19.5	27.0	5.3
	EV214-22070008	27.1	1.0	22.9	35.1	6.0
	EV214-22070009	29.0	1.1	24.5	35.1	7.0
	EV214-22070010	9.5	1.7	6.6	11.4	6.5
	EV214-23060001	9.5	3.2	6.7	10.7	9.9
	EV214-22070012	11.1	3.2	7.9	12.7	10.3
	EV214-23060002	11.1	3.2	8.4	12.7	10.3
HOT	EV214-23060003	12.7	3.2	7.9	14.3	10.3
	EV214-23060004	13.0	3.2	9.0	14.9	10.3
	EV214-23060005	14.3	3.2	9.9	16.3	10.3
HOT	EV214-23060006	15.9	3.2	11.1	17.5	10.3
	EV214-22070015	16.0	3.5	10.5	18.0	10.5
	EV214-23060007	16.5	3.2	12.3	18.6	10.3
	EV214-22070017	19.0	3.3	14.5	20.6	11.0
HOT	EV214-23060008	19.1	3.2	12.7	19.8	10.3
	EV214-22070018	22.0	3.5	17.3	24.8	11.5
	EV214-23060009	22.0	3.2	17.3	24.8	10.3
	EV214-23060010	22.2	3.2	17.0	23.4	10.3
	EV214-23060011	25.0	3.2	20.4	26.4	10.3
	EV214-22070020	25.4	3.2	20.6	26.6	10.3
	EV214-23060012	25.4	3.2	19.1	26.6	10.3
	EV214-22070021	27.8	3.2	22.2	29.4	10.3
	EV214-23060013	27.8	3.2	20.6	29.4	10.3
	EV214-22070022	31.8	3.2	26.6	34.1	10.3
HOT	EV214-23060014	31.8	3.2	25.8	34.1	10.3
	EV214-22070023	34.9	3.2	29.7	37.3	10.3
HOT	EV214-23060015	34.9	3.2	25.4	37.3	10.3
	EV214-22070024	38.1	3.2	31.7	40.1	10.7
	EV214-23060016	38.1	3.2	26.9	40.1	10.7
	EV214-23060017	50.8	3.2	43.9	53.9	10.7
	EV214-23060018	63.5	6.4	50.8	66.0	18.3
