材料 | UL94 V2 尼龙6/6，自然色 |

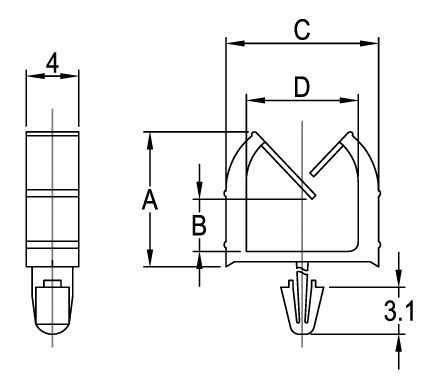

| 零件号 | A | B | C | D | 适用孔径 | 板材厚度 | |
| HOT | EV215-22070001 | 7.3 | 3 | 9.1 | 6.6 | 3 | 1.6 |
| EV215-22070002 | 7.3 | 3 | 9.1 | 6.6 | 3 | 2.36 | |
| EV215-22070003 | 9.1 | 3.9 | 10.8 | 8.1 | 3 | 1.6 | |
| EV215-22070004 | 9.1 | 3.9 | 10.8 | 8.1 | 3 | 2.36 | |
| EV215-22070005 | 11.2 | 6 | 12 | 9.1 | 3 | 1.6 | |
| EV215-22070006 | 11.2 | 6 | 12 | 9.1 | 3 | 2.36 | |
| EV215-22070007 | 13 | 7.7 | 12 | 9.1 | 3 | 1.6 | |
| EV215-22070008 | 13 | 7.7 | 12 | 9.1 | 3 | 2.36 | |
| EV215-22070009 | 7.3 | 3 | 9.1 | 6.6 | 3.5 | 1.6 | |
| EV215-22070010 | 7.3 | 3 | 9.1 | 6.6 | 3.5 | 2.36 | |
| EV215-22070011 | 9.1 | 3.9 | 10.8 | 8.1 | 3.5 | 1.6 | |
| EV215-22070012 | 9.1 | 3.9 | 10.8 | 8.1 | 3.5 | 2.36 | |
| EV215-22070013 | 11.2 | 6 | 12 | 9.1 | 3.5 | 1.6 |
