材料 | 铝合金5052H-32 |

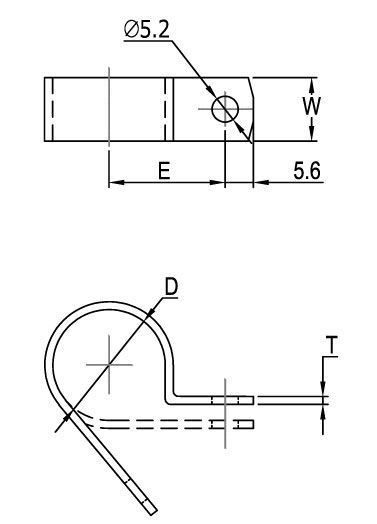

| 零件号 | D捆绑直径 | E | T | W | 标准包装数量 |
| EV215-22020001 | 3.2 | 11.7 | 0.8 | 9.5 | 1000 |
| EV215-22020002 | 4.8 | 12.7 | 0.8 | 9.5 | 1000 |
| EV215-22020003 | 6.4 | 13.5 | 0.8 | 9.5 | 1000 |
| EV215-22020004 | 7.9 | 14.2 | 0.8 | 9.5 | 1000 |
| EV215-22020005 | 9.5 | 15 | 0.8 | 9.5 | 1000 |
| EV215-22020006 | 11.1 | 15.7 | 0.8 | 9.5 | 1000 |
| EV215-22020007 | 12.7 | 16.5 | 0.8 | 9.5 | 1000 |
| EV215-22020008 | 14.3 | 19.1 | 0.8 | 9.5 | 1000 |
| EV215-22020009 | 15.9 | 19.8 | 0.8 | 9.5 | 1000 |
| EV215-22020010 | 17.5 | 20.6 | 1.6 | 12.7 | 500 |
| EV215-22020011 | 19.1 | 21.3 | 1.6 | 12.7 | 500 |
| EV215-22020012 | 22.2 | 22.9 | 1.6 | 12.7 | 500 |
| EV215-22020013 | 25.4 | 24.4 | 1.6 | 12.7 | 500 |
| EV215-22020014 | 28.6 | 26.7 | 1.6 | 12.7 | 500 |
| EV215-22020015 | 31.8 | 28.2 | 1.6 | 12.7 | 500 |
