材料及表面处理

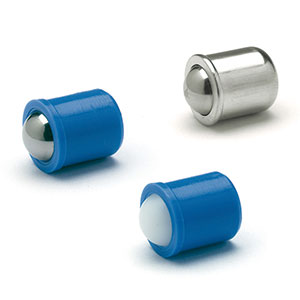

规格 | 本体 | 弹簧 | 滚珠材质 | 最大工作温度 |
KU型 | 聚甲醛基POM高科技聚合体 | 不锈钢弹簧 | 硬化不锈钢 | -30～+50°C |
KD型 | 高科技聚合体材料 | -30～+50°C | ||
MS型 | 铜 | 硬化不锈钢 | - | |
NI型 | 不锈钢 | 氮化AISI303不锈钢 | - |
*另有配套座架可供选择，详情请联系我司营业人员

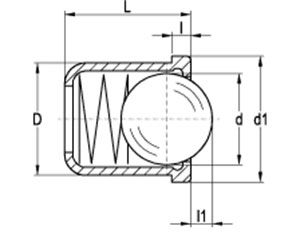

| 零件号 | 规格 | D | L | d | d1 | l | l1 | 预压[N] | 最大压载[N] | 重量[g] |
| EV272-03350001 | KU型 | 3 | 4 | 2.4 | 3.5 | 0.6 | 0.6 | 1.7 | 3.6 | 1 |
| EV272-03350002 | 4 | 5 | 3 | 4.6 | 1 | 0.8 | 2.5 | 6.5 | 1 | |
| EV272-03350003 | 5 | 6 | 4 | 5.6 | 1 | 1 | 4.5 | 9 | 1 | |
| EV272-03350004 | 6 | 7 | 5 | 6.5 | 1 | 1.6 | 6.5 | 13 | 1 | |
| EV272-03350005 | 8 | 9 | 6.5 | 8.5 | 1 | 1.9 | 8 | 18 | 2 | |
| EV272-03350006 | 10 | 13 | 8.5 | 11 | 1.5 | 2.4 | 12 | 23 | 3 | |
| EV272-03350007 | 12 | 16 | 10 | 13 | 1.5 | 3.3 | 13 | 25 | 5 | |
| EV272-03350008 | KD型 | 4 | 5 | 3 | 4.6 | 1 | 0.8 | 2.5 | 6.5 | 1 |
| EV272-03350009 | 5 | 6 | 4 | 5.6 | 1 | 1 | 4.5 | 9 | 1 | |
| EV272-03350010 | 6 | 7 | 5 | 6.5 | 1 | 1.6 | 6.5 | 13 | 1 | |
| EV272-03350011 | 8 | 9 | 6.5 | 8.5 | 1 | 1.9 | 8 | 18 | 2 | |
| EV272-03350012 | 10 | 13 | 8.5 | 11 | 1.5 | 2.4 | 12 | 23 | 3 | |
| EV272-03350013 | 12 | 16 | 10 | 13 | 1.5 | 3.3 | 13 | 25 | 5 | |
| EV272-03350014 | MS型 | 3 | 4 | 2.4 | 3.5 | 0.6 | 0.6 | 1.8 | 3.5 | 1 |
| EV272-03350015 | 4 | 5 | 2.5 | 4.6 | 1 | 0.8 | 2.5 | 6 | 1 | |
| EV272-03350016 | 5 | 6 | 3.5 | 5.6 | 1 | 1 | 3 | 6.5 | 1 | |
| EV272-03350017 | 6 | 7 | 4.5 | 6.5 | 1 | 1.6 | 5.5 | 11.5 | 1 | |
| EV272-03350018 | 8 | 9 | 6 | 8.5 | 1 | 1.9 | 7 | 12.5 | 2 | |
| EV272-03350019 | NI型 | 3 | 4 | 2.4 | 3.5 | 0.75 | 0.7 | 1.8 | 3.5 | 1 |
| EV272-03350020 | 4 | 5 | 3 | 4.6 | 0.9 | 1 | 2.5 | 6 | 1 | |
| EV272-03350021 | 5 | 6 | 4 | 5.6 | 0.9 | 1.4 | 3 | 6.5 | 1 | |
| EV272-03350022 | 6 | 7 | 5 | 6.5 | 1 | 1.8 | 5.5 | 11.5 | 1 | |
| EV272-03350023 | 8 | 9 | 6.5 | 8.5 | 1.1 | 2.4 | 7 | 12.5 | 2 | |
| EV272-03350024 | 10 | 13 | 8.5 | 11 | 1.7 | 3.3 | 8.5 | 18.5 | 3 | |
| EV272-03350025 | 12 | 16 | 10 | 13 | 2.3 | 4 | 12 | 26.5 | 4 |
