材料及表面处理
规格 | 螺纹本体 | 弹簧 | 闩头材质 | 最大工作温度 |
S型 | 黑色氧化钢质，带内六角凹头 | 带正常回弹力的钢质弹簧 | 硬化钢 | 250°C |
SS型 | 带负重型回弹力与未光亮内六角插口的钢弹簧 | 硬化钢 | 250°C | |
K型 | 带正常回弹力的钢质弹簧 | 聚甲醛基POM高科技聚合体 | -30～+50°C | |
SN型 | AISI303不锈钢，带内六角凹头 | 带正常回弹力的不锈钢弹簧 | 氮化AISI303不锈钢 | 250°C |
KN型 | 聚甲醛基POM高科技聚合体 | -30～+50°C |
*可按需提供用于锁紧螺纹的聚酰胺涂层或自粘胶囊颗粒，详情请联系我司营业人员 |
*可按需提供配套螺丝刀，详情请联系我司营业人员 |

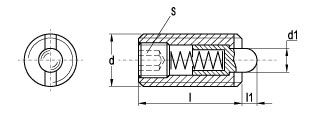

| 零件号 | 规格 | d | d1 | l | l1 | s | 预压[N] | 最大压载[N] | 重量[g] |
| EV272-03340001 | S型 | M3 | 1 | 12 | 1 | 0.7 | 2 | 4 | 1 |
| EV272-03340002 | M4 | 1.5 | 15 | 1.5 | 1.3 | 4.5 | 16 | 1 | |
| EV272-03340003 | M5 | 2.4 | 18 | 2.3 | 1.5 | 6 | 19 | 2 | |
| EV272-03340004 | M6 | 2.7 | 20 | 2.5 | 2 | 6 | 19 | 3 | |
| EV272-03340005 | M8 | 3.5 | 22 | 3 | 2.5 | 10 | 39 | 6 | |
| EV272-03340006 | M10 | 4 | 22 | 3 | 3 | 10 | 39 | 9 | |
| EV272-03340007 | M12 | 6 | 28 | 4 | 4 | 12 | 53 | 16 | |
| EV272-03340008 | M16 | 7.5 | 32 | 5 | 5 | 45 | 100 | 35 | |
| EV272-03340009 | M20 | 10 | 40 | 7 | 6 | 52 | 125 | 65 | |
| EV272-03340010 | M24 | 12 | 52 | 10 | 8 | 70 | 170 | 120 | |
| EV272-03340011 | SS型 | M5 | 2.4 | 18 | 2.3 | 1.5 | 11 | 40 | 2 |
| EV272-03340012 | M6 | 2.7 | 20 | 2.5 | 2 | 15 | 43 | 3 | |
| EV272-03340013 | M8 | 3.5 | 22 | 3 | 2.5 | 20 | 75 | 6 | |
| EV272-03340014 | M10 | 4 | 22 | 3 | 3 | 20 | 75 | 9 | |
| EV272-03340015 | M12 | 6 | 28 | 4 | 4 | 45 | 120 | 16 | |
| EV272-03340016 | M16 | 7.5 | 32 | 5 | 5 | 64 | 160 | 35 | |
| EV272-03340017 | M20 | 10 | 40 | 7 | 6 | 75 | 195 | 65 | |
| EV272-03340018 | M24 | 12 | 52 | 10 | 8 | 75 | 245 | 120 | |
| EV272-03340019 | K型 | M4 | 1.5 | 15 | 1.5 | 1.3 | 4.5 | 16 | 1 |
| EV272-03340020 | M5 | 2.4 | 18 | 2.3 | 1.5 | 6 | 19 | 2 | |
| EV272-03340021 | M6 | 2.7 | 20 | 2.5 | 2 | 6 | 19 | 2 | |
| EV272-03340022 | M8 | 3.5 | 22 | 3 | 2.5 | 10 | 39 | 5 | |
| EV272-03340023 | M10 | 4 | 22 | 3 | 3 | 10 | 39 | 10 | |
| EV272-03340024 | M12 | 6 | 28 | 4 | 4 | 12 | 53 | 14 | |
| EV272-03340025 | M16 | 7.5 | 32 | 5 | 5 | 45 | 100 | 31 | |
| EV272-03340026 | SN型 | M4 | 1.5 | 15 | 1.5 | 1.3 | 4.5 | 16 | 1 |
| EV272-03340027 | M5 | 2.4 | 18 | 2.3 | 1.5 | 6 | 19 | 2 | |
| EV272-03340028 | M6 | 2.7 | 20 | 2.5 | 2 | 6 | 19 | 3 | |
| EV272-03340029 | M8 | 3.5 | 22 | 3 | 2.5 | 10 | 39 | 6 | |
| EV272-03340030 | M10 | 4 | 22 | 3 | 3 | 10 | 39 | 9 | |
| EV272-03340031 | M12 | 6 | 28 | 4 | 4 | 12 | 53 | 16 | |
| EV272-03340032 | M16 | 7.5 | 32 | 5 | 5 | 45 | 100 | 35 | |
| EV272-03340033 | M20 | 10 | 40 | 7 | 6 | 52 | 125 | 65 | |
| EV272-03340034 | KN型 | M4 | 1.5 | 15 | 1.5 | 1.3 | 4.5 | 16 | 1 |
| EV272-03340035 | M5 | 2.4 | 18 | 2.3 | 1.5 | 6 | 19 | 2 | |
| EV272-03340036 | M6 | 2.7 | 20 | 2.5 | 2 | 6 | 19 | 3 | |
| EV272-03340037 | M8 | 3.5 | 22 | 3 | 2.5 | 10 | 39 | 6 | |
| EV272-03340038 | M10 | 4 | 22 | 3 | 3 | 10 | 39 | 9 | |
| EV272-03340039 | M12 | 6 | 28 | 4 | 4 | 12 | 53 | 16 | |
| EV272-03340040 | M16 | 7.5 | 32 | 5 | 5 | 45 | 100 | 36 |
