材料及表面处理
规格 | 螺纹本体 | 弹簧 | 滚珠材质 |
K型 | 黑色氧化处理钢制带内六角槽 | 带正常回弹力的钢质弹簧 | 硬化钢珠 |
KS型 | 带负重型回弹力的钢质弹簧 | 镀锌钢珠 | |
KN型 | AISI303不锈钢带内六角槽 | 带正常回弹力的不锈钢弹簧 | 硬化不锈钢钢珠 |
KSN型（本体为黄色） | 带负重型回弹力的不锈钢弹簧 | 硬化不锈钢钢珠 |
*可按需提供用于锁紧螺纹的聚酰胺涂层，详情请联系我司营业人员

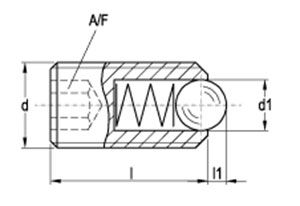

| 零件号 | 规格 | d1 | d2 | l | l1 | A/F | 预压[N] | 最大压载[N] | 重量[g] |
| EV272-03330001 | K型 | M3 | 1.5 | 8 | 0.4 | 1.5 | 3 | 4.5 | 2 |
| EV272-03330002 | M4 | 2.5 | 12 | 0.8 | 2 | 6 | 14 | 4 | |
| EV272-03330003 | M5 | 3 | 14 | 0.9 | 2.5 | 8 | 14 | 5 | |
| EV272-03330004 | M6 | 3.5 | 15 | 1 | 3 | 11 | 18 | 6 | |
| EV272-03330005 | M8 | 4.5 | 18 | 1.5 | 4 | 18 | 31 | 10 | |
| EV272-03330006 | M10 | 6 | 23 | 2 | 5 | 24 | 45 | 12 | |
| EV272-03330007 | M12 | 8 | 26 | 2.5 | 6 | 26 | 49 | 25 | |
| EV272-03330008 | M16 | 10 | 33 | 3.5 | 8 | 41 | 86 | 32 | |
| EV272-03330009 | M20 | 12 | 43 | 4.5 | 10 | 56 | 111 | 36 | |
| EV272-03330010 | M24 | 15 | 48 | 5.5 | 12 | 81 | 151 | 42 | |
| EV272-03330011 | KS型 | M5 | 3 | 14 | 0.9 | 2.5 | 15 | 22 | 1 |
| EV272-03330012 | M6 | 3.5 | 15 | 1 | 3 | 19 | 28 | 2 | |
| EV272-03330013 | M8 | 4.5 | 18 | 1.5 | 4 | 36 | 62 | 4 | |
| EV272-03330014 | M10 | 6 | 23 | 2 | 5 | 57 | 104 | 8 | |
| EV272-03330015 | M12 | 8 | 26 | 2.5 | 6 | 61 | 110 | 13 | |
| EV272-03330016 | M16 | 10 | 33 | 3.5 | 7 | 68 | 142 | 32 | |
| EV272-03330017 | M20 | 12 | 43 | 4.5 | 10 | 84 | 166 | 36 | |
| EV272-03330018 | M24 | 15 | 48 | 5.5 | 12 | 127 | 237 | 42 | |
| EV272-03330019 | KN型 | M3 | 1.5 | 8 | 0.4 | 1.5 | 3 | 4.5 | 2 |
| EV272-03330020 | M4 | 2.5 | 12 | 0.8 | 2 | 8.6 | 14.5 | 4 | |
| EV272-03330021 | M5 | 3 | 14 | 0.9 | 2.5 | 8 | 14 | 5 | |
| EV272-03330022 | M6 | 3.5 | 15 | 1 | 3 | 11 | 18 | 6 | |
| EV272-03330023 | M8 | 4.5 | 18 | 1.5 | 4 | 18 | 31 | 10 | |
| EV272-03330024 | M10 | 6 | 23 | 2 | 5 | 24 | 45 | 12 | |
| EV272-03330025 | M12 | 8 | 26 | 2.5 | 6 | 26 | 49 | 25 | |
| EV272-03330026 | M16 | 10 | 33 | 3.5 | 8 | 41 | 86 | 32 | |
| EV272-03330027 | M20 | 12 | 43 | 4.5 | 10 | 56 | 111 | 37 | |
| EV272-03330028 | M24 | 15 | 48 | 5.5 | 12 | 81 | 151 | 43 | |
| EV272-03330029 | KSN型 | M5 | 3 | 14 | 0.9 | 2.5 | 15 | 22 | 1 |
| EV272-03330030 | M6 | 3.5 | 15 | 1 | 3 | 19 | 28 | 2 | |
| EV272-03330031 | M8 | 4.5 | 18 | 1.5 | 4 | 36 | 62 | 4 | |
| EV272-03330032 | M10 | 6 | 23 | 2 | 5 | 57 | 104 | 8 | |
| EV272-03330033 | M12 | 8 | 26 | 2.5 | 6 | 61 | 110 | 13 | |
| EV272-03330034 | M16 | 10 | 33 | 3.5 | 8 | 68 | 142 | 32 | |
| EV272-03330035 | M20 | 12 | 43 | 4.5 | 10 | 84 | 166 | 36 | |
| EV272-03330036 | M24 | 15 | 48 | 5.5 | 12 | 127 | 237 | 43 |
