材料及表面处理
规格 | 螺纹本体 | 弹簧 | 滚珠材质 |
K型 | 黑色氧化钢质带一字槽口 | 带正常回弹力的钢质弹簧 | 硬化钢珠 |
KS型 | 带负重型回弹力的钢质弹簧 | 镀锌钢珠 | |
KN型 | AISI303不锈钢带一字槽口 | 带正常回弹力的不锈钢弹簧 | 硬化不锈钢钢珠 |
KSN型（本体为黄色） | 带负重型回弹力的不锈钢弹簧 | 硬化不锈钢钢珠 |

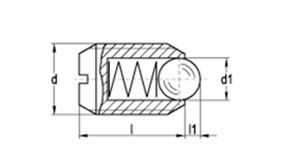

| 零件号 | 规格 | d | d1 | l | l1 | 预压[N] | 最大压载[N] | 重量[g] | |
| HOT | EV272-03300001 | K型 | M3 | 1.5 | 7 | 0.4 | 3 | 4.5 | 1 |
| EV272-03300002 | M4 | 2.5 | 9 | 0.8 | 6 | 14.5 | 1 | ||
| EV272-03300003 | M5 | 3 | 12 | 0.9 | 8 | 14 | 1 | ||
| EV272-03300004 | M6 | 3.5 | 14 | 1 | 11 | 18 | 2 | ||
| EV272-03300005 | M8 | 4.5 | 16 | 1.5 | 18 | 31 | 4 | ||
| EV272-03300006 | M10 | 6 | 19 | 2 | 24 | 45 | 7 | ||
| EV272-03300007 | M12 | 8 | 22 | 2.5 | 26 | 49 | 10 | ||
| EV272-03300008 | M16 | 10 | 24 | 3.5 | 41 | 86 | 24 | ||
| EV272-03300009 | M20 | 12 | 30 | 4.5 | 56 | 111 | 43 | ||
| EV272-03300010 | M24 | 15 | 34 | 5.5 | 81 | 151 | 70 | ||
| EV272-03300011 | KS型 | M5 | 3 | 12 | 0.9 | 15 | 22 | 1 | |
| EV272-03300012 | M6 | 3.5 | 14 | 1 | 19 | 28 | 2 | ||
| EV272-03300013 | M8 | 4.5 | 16 | 1.5 | 36 | 62 | 4 | ||
| EV272-03300014 | M10 | 6 | 19 | 2 | 57 | 104 | 7 | ||
| EV272-03300015 | M12 | 8 | 22 | 2.5 | 61 | 110 | 10 | ||
| EV272-03300016 | M16 | 10 | 24 | 3.5 | 68 | 142 | 24 | ||
| EV272-03300017 | M20 | 12 | 30 | 4.5 | 84 | 166 | 43 | ||
| EV272-03300018 | M24 | 15 | 34 | 5.5 | 127 | 237 | 70 | ||
| EV272-03300019 | KN型 | M3 | 1.5 | 7 | 0.4 | 3 | 4.5 | 1 | |
| EV272-03300020 | M4 | 2.5 | 9 | 0.8 | 6 | 14.5 | 1 | ||
| HOT | EV272-03300021 | M5 | 3 | 12 | 0.9 | 8 | 14 | 1 | |
| EV272-03300022 | M6 | 3.5 | 14 | 1 | 11 | 18 | 2 | ||
| EV272-03300023 | M8 | 4.5 | 16 | 1.5 | 18 | 31 | 4 | ||
| EV272-03300024 | M10 | 6 | 19 | 2 | 24 | 45 | 7 | ||
| EV272-03300025 | M12 | 8 | 22 | 2.5 | 26 | 49 | 10 | ||
| EV272-03300026 | M16 | 10 | 24 | 3.5 | 41 | 86 | 24 | ||
| EV272-03300027 | M20 | 12 | 30 | 4.5 | 56 | 111 | 43 | ||
| EV272-03300028 | M24 | 15 | 34 | 5.5 | 81 | 151 | 70 | ||
| EV272-03300029 | KSN型 | M5 | 3 | 12 | 0.9 | 15 | 22 | 1 | |
| EV272-03300030 | M6 | 3.5 | 14 | 1 | 19 | 28 | 2 | ||
| EV272-03300031 | M8 | 4.5 | 16 | 1.5 | 36 | 62 | 4 | ||
| EV272-03300032 | M10 | 6 | 19 | 2 | 57 | 104 | 7 | ||
| EV272-03300033 | M12 | 8 | 22 | 2.5 | 61 | 110 | 10 | ||
| EV272-03300034 | M16 | 10 | 24 | 3.5 | 68 | 142 | 24 | ||
| EV272-03300035 | M20 | 12 | 30 | 4.5 | 84 | 166 | 43 | ||
| EV272-03300036 | M24 | 15 | 34 | 5.5 | 127 | 237 | 70 |
