材料及表面处理
螺纹本体 | 锁紧螺母 | 销头 | 把手 |
抗腐蚀锌合金 | 黑色氧化钢 | 镀锌钢 | 黑色聚酰胺基PA，亚光 |
另有同规格不锈钢款可供选择，详情请联系我司营业人员

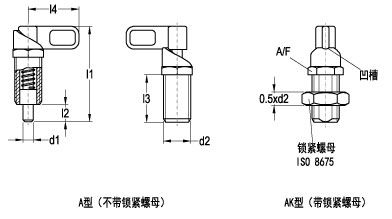

| 零件号 | 规格 | d1 | d2 | l1 | l2 | l3 | l4 | A/F | 预压[N] | 最大压载[N] | 重量[g] |
| EV272-03150001 | A型 | 4 | M12x1.5 | 48 | 8 | 25 | 25 | 13 | 8 | 22 | 49 |
| EV272-03150002 | 5 | M12x1.5 | 48 | 8 | 25 | 25 | 13 | 8 | 22 | 49 | |
| EV272-03150003 | 6 | M12x1.5 | 48 | 8 | 25 | 25 | 13 | 8 | 22 | 49 | |
| EV272-03150004 | 6 | M16x1.5 | 57 | 10 | 28 | 30 | 18 | 11 | 30 | 45 | |
| EV272-03150005 | 8 | M16x1.5 | 57 | 10 | 28 | 30 | 18 | 11 | 30 | 50 | |
| EV272-03150006 | 10 | M16x1.5 | 57 | 10 | 28 | 30 | 18 | 11 | 30 | 50 | |
| EV272-03150007 | 8 | M20x1.5 | 70 | 12 | 36 | 37 | 22 | 20 | 56 | 95 | |
| EV272-03150008 | 10 | M20x1.5 | 70 | 12 | 36 | 37 | 22 | 20 | 56 | 100 | |
| EV272-03150009 | 12 | M20x1.5 | 70 | 12 | 36 | 37 | 22 | 20 | 56 | 100 | |
| EV272-03150010 | AK型 | 4 | M12x1.5 | 48 | 8 | 25 | 25 | 13 | 8 | 22 | 60 |
| EV272-03150011 | 5 | M12x1.5 | 48 | 8 | 25 | 25 | 13 | 8 | 22 | 60 | |
| EV272-03150012 | 6 | M12x1.5 | 48 | 8 | 25 | 25 | 13 | 8 | 22 | 60 | |
| EV272-03150013 | 6 | M16x1.5 | 57 | 10 | 28 | 30 | 18 | 11 | 30 | 65 | |
| EV272-03150014 | 8 | M16x1.5 | 57 | 10 | 28 | 30 | 18 | 11 | 30 | 50 | |
| EV272-03150015 | 10 | M16x1.5 | 57 | 10 | 28 | 30 | 18 | 11 | 30 | 65 | |
| EV272-03150016 | 8 | M20x1.5 | 70 | 12 | 36 | 37 | 22 | 20 | 56 | 130 | |
| EV272-03150017 | 10 | M20x1.5 | 70 | 12 | 36 | 37 | 22 | 20 | 56 | 130 | |
| EV272-03150018 | 12 | M20x1.5 | 70 | 12 | 36 | 37 | 22 | 20 | 56 | 130 |
