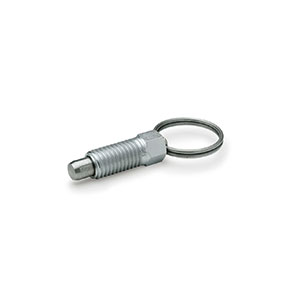

特点 | 相对成本较低 |
尺寸小巧 | |
适用于无需高精分度的场合 |
材料及表面处理
螺纹本体 | 销头 | 拉环 |
镀锌钢 | AISI303不锈钢 | 不锈钢 |

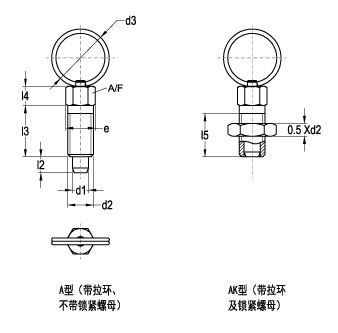

| 零件号 | 规格 | d1 | d2 | d3 | e | l2 min. | l3 | l4 | l5 min. | A/F | 预压[N] | 最大压载[N] | 重量[g] |
| EV272-03100001 | A型 | 3 | M6 | 14 | 7 | 3.5 | 12 | 5 | 10 | 6 | 3 | 12 | 4 |
| EV272-03100002 | 3 | M6x0.75 | 14 | 7 | 3.5 | 12 | 5 | 10 | 6 | 3 | 12 | 4 | |
| EV272-03100003 | 4 | M6 | 14 | 7 | 4 | 12 | 5 | 10 | 6 | 3 | 12 | 4 | |
| EV272-03100004 | 4 | M8x1 | 18 | 9 | 4.5 | 16 | 6 | 13.5 | 8 | 5 | 24 | 8 | |
| EV272-03100005 | 5 | M8 | 18 | 9 | 5 | 16 | 6 | 13.5 | 8 | 5 | 24 | 8 | |
| EV272-03100006 | 5 | M8x1 | 18 | 9 | 5 | 16 | 6 | 13.5 | 8 | 5 | 24 | 10 | |
| EV272-03100007 | 5 | M10x1 | 18 | 12 | 5 | 16 | 6 | 13.5 | 10 | 5 | 24 | 15 | |
| EV272-03100008 | 6 | M10 | 24 | 12 | 6 | 20 | 8 | 17 | 10 | 5 | 21 | 17 | |
| EV272-03100009 | 6 | M12x1.5 | 24 | 14 | 6 | 20 | 8 | 16.5 | 12 | 5 | 21 | 20 | |
| EV272-03100010 | 8 | M12 | 30 | 14 | 8 | 24 | 9 | 20.5 | 12 | 6 | 22 | 30 | |
| EV272-03100011 | 8 | M12x1.5 | 30 | 14 | 8 | 24 | 9 | 20.5 | 12 | 6 | 22 | 40 | |
| EV272-03100012 | 8 | M16x1.5 | 30 | 20 | 8 | 24 | 9 | 20.5 | 17 | 6 | 22 | 54 | |
| EV272-03100013 | 10 | M16x1.5 | 30 | 20 | 10 | 26 | 9 | 22.5 | 17 | 4 | 27 | 55 | |
| EV272-03100014 | AK型 | 3 | M6 | 14 | 7 | 3.5 | 12 | 5 | 10 | 6 | 3 | 12 | 5 |
| EV272-03100015 | 3 | M6x0.75 | 14 | 7 | 3.5 | 12 | 5 | 10 | 6 | 3 | 12 | 15 | |
| EV272-03100016 | 4 | M6 | 14 | 7 | 4 | 12 | 5 | 10 | 6 | 3 | 12 | 20 | |
| EV272-03100017 | 4 | M8x1 | 18 | 9 | 4.5 | 16 | 6 | 13.5 | 8 | 5 | 24 | 19 | |
| EV272-03100018 | 5 | M8 | 18 | 9 | 5 | 16 | 6 | 13.5 | 8 | 5 | 24 | 21 | |
| EV272-03100019 | 5 | M8x1 | 18 | 9 | 5 | 16 | 6 | 13.5 | 8 | 5 | 24 | 23 | |
| EV272-03100020 | 5 | M10x1 | 18 | 12 | 5 | 16 | 6 | 13.5 | 10 | 5 | 24 | 24 | |
| EV272-03100021 | 6 | M10 | 24 | 12 | 6 | 20 | 8 | 17 | 10 | 5 | 21 | 27 | |
| EV272-03100022 | 6 | M12x1.5 | 24 | 14 | 6 | 20 | 8 | 16.5 | 12 | 5 | 21 | 30 | |
| EV272-03100023 | 8 | M12 | 30 | 14 | 8 | 24 | 9 | 20.5 | 12 | 6 | 22 | 40 | |
| EV272-03100024 | 8 | M12x1.5 | 30 | 14 | 8 | 24 | 9 | 20.5 | 12 | 6 | 22 | 42 | |
| EV272-03100025 | 8 | M16x1.5 | 30 | 20 | 8 | 24 | 9 | 20.5 | 17 | 6 | 22 | 50 | |
| EV272-03100026 | 10 | M16x1.5 | 30 | 20 | 10 | 26 | 9 | 22.5 | 17 | 4 | 27 | 55 |
