特点 | 重量轻，机械强度大 |
防腐蚀 | |
较小的摩擦系数，不需润滑维护 |
材料及表面处理
螺纹本体 | 捏手 | 弹簧 |
特殊玻璃纤维加固PA | 黑色高弹性PA | AISI302 |

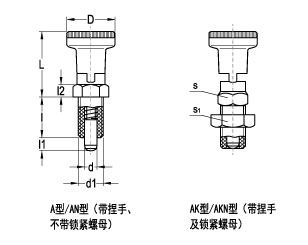

| 零件号 | 规格 | 销头材质 | d | d1 | L | D | l | l1 | l2 | s | s1 | 预压[N] | 最大压载[N] | 重量[g] |
| EV272-02020001 | A型 | 黑色氧化处理 硬化钢 | 5 | M10x1 | 29 | 21 | 17 | 5 | 5 | 12 | - | 7 | 17 | 13 |
| EV272-02020002 | 6 | M12x1.5 | 35 | 25 | 20 | 6 | 6 | 14 | - | 9 | 24 | 20 | ||
| EV272-02020003 | 8 | M16x1.5 | 43 | 31 | 26 | 8 | 8 | 19 | - | 11 | 30 | 25 | ||
| EV272-02020004 | 10 | M20x1.5 | 48 | 31 | 33 | 10 | 10 | 22 | - | 19 | 45 | 32 | ||
| EV272-02020005 | AK型 | 5 | M10x1 | 29 | 21 | 17 | 5 | 5 | 12 | 16 | 7 | 17 | 23 | |
| EV272-02020006 | 6 | M12x1.5 | 35 | 25 | 20 | 6 | 6 | 14 | 19 | 9 | 24 | 33 | ||
| EV272-02020007 | 8 | M16x1.5 | 43 | 31 | 26 | 8 | 8 | 19 | 24 | 11 | 30 | 50 | ||
| EV272-02020008 | 10 | M20x1.5 | 48 | 31 | 33 | 10 | 10 | 22 | 30 | 19 | 45 | 69 | ||
| EV272-02020009 | AN型 | AISI303 不锈钢 （无磁性） | 5 | M10x1 | 29 | 21 | 17 | 5 | 5 | 12 | - | 7 | 17 | 13 |
| EV272-02020010 | 6 | M12x1.5 | 35 | 25 | 20 | 6 | 6 | 14 | - | 9 | 24 | 20 | ||
| EV272-02020011 | 8 | M16x1.5 | 43 | 31 | 26 | 8 | 8 | 19 | - | 11 | 30 | 25 | ||
| EV272-02020012 | 10 | M20x1.5 | 48 | 31 | 33 | 10 | 10 | 22 | - | 19 | 45 | 32 | ||
| EV272-02020013 | AKN型 | 5 | M10x1 | 29 | 21 | 17 | 5 | 5 | 12 | 16 | 7 | 17 | 23 | |
| EV272-02020014 | 6 | M12x1.5 | 35 | 25 | 20 | 6 | 6 | 14 | 19 | 9 | 24 | 33 | ||
| EV272-02020015 | 8 | M16x1.5 | 43 | 31 | 26 | 8 | 8 | 19 | 24 | 11 | 30 | 50 | ||
| EV272-02020016 | 10 | M20x1.5 | 48 | 31 | 33 | 10 | 10 | 22 | 30 | 19 | 45 | 69 |
