材料及表面处理
本体 | 销头 | 锁紧螺母 | 捏手 |
AISI303不锈钢 | AISI303 | AISI303不锈钢 | 黑色亚光 |
另有同规格黑色氧化钢材质可供选购，详情请联系我司营业人员

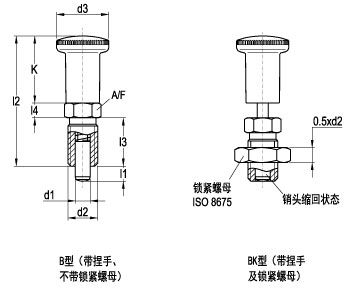

| 零件号 | 规格 | d1 | d2 | d3 | k | l1 | l2 | l3 | l4 | A/F | 预压[N] | 最大压载[N] | 重量[g] |
| EV272-03070001 | B型 | 4 | M8x1 | 16 | 21 | 4 | 42 | 16 | 5 | 10 | 4.5 | 12 | 11 |
| EV272-03070002 | 4 | M8x1 | 16 | 21 | 6 | 42 | 16 | 5 | 10 | 4 | 12.5 | 11 | |
| EV272-03070003 | 5 | M10x1 | 19 | 24 | 5 | 48 | 18 | 6 | 12 | 5 | 15 | 19 | |
| EV272-03070004 | 5 | M10x1 | 19 | 24 | 8 | 48 | 18 | 6 | 12 | 5 | 18 | 19 | |
| EV272-03070005 | 6 | M12x1.5 | 23 | 30 | 6 | 58 | 22 | 6 | 14 | 6.5 | 19 | 32 | |
| EV272-03070006 | 6 | M12x1.5 | 23 | 30 | 9 | 58 | 22 | 6 | 14 | 6 | 25 | 32 | |
| EV272-03070007 | 8 | M16x1.5 | 28 | 36 | 8 | 70 | 26 | 8 | 17 | 8.5 | 26 | 68 | |
| EV272-03070008 | 8 | M16x1.5 | 28 | 36 | 12 | 70 | 26 | 8 | 17 | 8.5 | 28 | 67 | |
| EV272-03070009 | 10 | M16x1.5 | 28 | 36 | 12 | 70 | 26 | 8 | 17 | 9.5 | 38 | 69 | |
| EV272-03070010 | 12 | M20x1.5 | 28 | 36 | 15 | 79 | 33 | 10 | 22 | 11.5 | 40 | 117 | |
| EV272-03070011 | BK型 | 4 | M8x1 | 16 | 21 | 4 | 42 | 16 | 5 | 10 | 4.5 | 12 | 12 |
| EV272-03070012 | 4 | M8x1 | 16 | 21 | 6 | 42 | 16 | 5 | 10 | 4 | 12.5 | 12 | |
| EV272-03070013 | 5 | M10x1 | 19 | 24 | 5 | 48 | 18 | 6 | 12 | 5 | 15 | 20 | |
| EV272-03070014 | 5 | M10x1 | 19 | 24 | 8 | 48 | 18 | 6 | 12 | 5 | 18 | 20 | |
| EV272-03070015 | 6 | M12x1.5 | 23 | 30 | 6 | 58 | 22 | 6 | 14 | 6.5 | 19 | 33 | |
| EV272-03070016 | 6 | M12x1.5 | 23 | 30 | 9 | 58 | 22 | 6 | 14 | 6 | 25 | 33 | |
| EV272-03070017 | 8 | M16x1.5 | 28 | 36 | 8 | 70 | 2 | 8 | 17 | 8.5 | 26 | 69 | |
| EV272-03070018 | 8 | M16x1.5 | 28 | 36 | 12 | 70 | 26 | 8 | 17 | 8.5 | 28 | 69 | |
| EV272-03070019 | 10 | M16x1.5 | 28 | 36 | 12 | 70 | 26 | 8 | 17 | 9.5 | 38 | 71 | |
| EV272-03070020 | 12 | M20x1.5 | 28 | 36 | 15 | 79 | 33 | 10 | 22 | 11.5 | 40 | 151 |
