材料及表面处理 | 高弹性PP，黑色亚光 |
装配 | 铜质轮毂，带螺纹通孔 |
特点 | 符合人体工程学设计 |
舒适握持 | |
注意 | 可另行选配中心帽，详情请联系我司营业人员 |

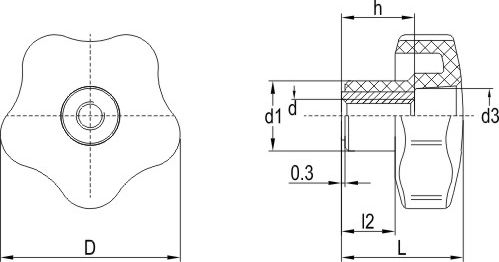

| 零件号 | D | L | d1 | d3 | l2 | d | h | 重量[g] |
| EV154-02020001 | 32 | 23 | 15 | 10 | 10 | M5 | 12 | 11 |
| EV154-02020002 | 32 | 23 | 15 | 10 | 10 | M6 | 12 | 10 |
| EV154-02020003 | 32 | 23 | 15 | 10 | 10 | M8 | 12 | 9 |
| EV154-02020004 | 40 | 27 | 17 | 12 | 12 | M6 | 18 | 26 |
| EV154-02020005 | 40 | 27 | 17 | 12 | 12 | M8 | 18 | 24 |
| EV154-02020006 | 40 | 27 | 17 | 12 | 12 | M10 | 17 | 23 |
| EV154-02020007 | 50 | 32 | 19 | 15 | 14 | M8 | 20 | 38 |
| EV154-02020008 | 50 | 32 | 19 | 15 | 14 | M10 | 20 | 34 |
| EV154-02020009 | 50 | 32 | 19 | 15 | 14 | M12 | 20 | 30 |
| EV154-02020010 | 63 | 37 | 22 | 19 | 16 | M8 | 26 | 44 |
| EV154-02020011 | 63 | 37 | 22 | 19 | 16 | M10 | 26 | 42 |
| EV154-02020012 | 63 | 37 | 22 | 19 | 16 | M12 | 26 | 40 |
| EV154-02020013 | 74 | 43.5 | 26 | 17 | 22 | M12 | 26 | 56 |
| EV154-02020014 | 74 | 43.5 | 26 | 17 | 22 | M14 | 26 | 52 |
| EV154-02020015 | 74 | 43.5 | 26 | 17 | 22 | M16 | 31 | 54 |
