| 材料 | 尼龙6/6 |
| 颜色 | 自然色 |
| 阻燃等级 | UL94V2 |
● 可以用乙缩醛材料定制

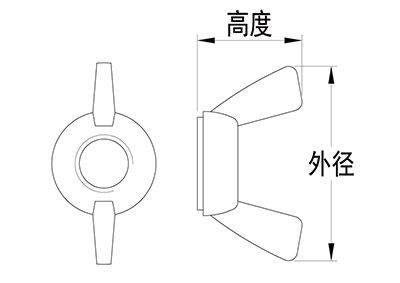

| 零件号 | 螺纹尺寸 | 螺纹规格 | 外径(参考尺寸) | 高度 |
| EV107-19070001 | 4 | 4-40 | 0.90 (22.86) | 0.48 (12.19) |
| EV107-19070002 | 6 | 6-32 | 0.90 (22.86) | 0.48 (12.19) |
| EV107-19070003 | 8 | 8-32 | 0.90 (22.86) | 0.48 (12.19) |
| EV107-19070004 | 10 | 10-24 | 0.90 (22.86) | 0.48 (12.19) |
| EV107-19070005 | 10 | 10-32 | 0.90 (22.86) | 0.48 (12.19) |
| EV107-19070006 | 10 | 10-24 | 1.09 (27.69) | 0.63 (16.00) |
| EV107-19070007 | 10 | 10-32 | 1.09 (27.69) | 0.63 (16.00) |
| EV107-19070008 | 1/4 | 1/4-20 | 1.09 (27.69) | 0.63 (16.00) |
| EV107-19070009 | 1/4 | 1/4-28 | 1.09 (27.69) | 0.63 (16.00) |
| EV107-19070010 | 1/4 | 1/4-20 | 1.36 (34.54) | 0.71 (18.03) |
| EV107-19070011 | 1/4 | 1/4-28 | 1.36 (34.54) | 0.71 (18.03) |
| EV107-19070012 | 5/16 | 5/16-18 | 1.37 (34.80) | 0.72 (18.29) |
| EV107-19070013 | 3/8 | 3/8-16 | 1.37 (34.80) | 0.72 (18.29) |
| EV107-19070014 | 3/8 | 3/8-24 | 1.37 (34.80) | 0.72 (18.29) |
| EV107-19070015 | 7/16 | 7/16-14 | 1.76 (44.70) | 0.90 (22.86) |
| EV107-19070016 | 1/2 | 1/2-13 | 1.76 (44.70) | 0.90 (22.86) |
| EV107-19070017 | 9/16 | 9/16-12 | 1.76 (44.70) | 0.90 (22.86) |
