义文机电水平调整件 EV175-0307参数信息

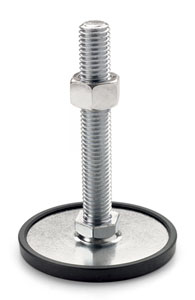

GN-40-A1-S-水平调整件-实物图3

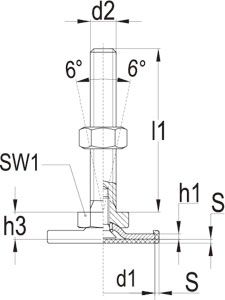

GN-40-A1-S-水平调整件-线描图ok


注意另有更多规格尺寸可供选择

另有同规格不锈钢材质的调整脚可供选购

另有不带橡胶衬垫规格可供选购

详情请联系我司营业人员


装配不带螺母,底部外六角立面

材料及表面处理

零件名材料表面处理
底盘镀锌
螺杆镀锌,蓝钝处理
橡胶衬垫TPE黑色


零件号l1d2承重[N]d1h1h3sSW1
EV175-0307000140M87000402111.517
EV175-0307000250
EV175-0307000363
EV175-0307000450M107000
EV175-0307000560
EV175-0307000680
EV175-03070007100
EV175-0307000860M127000
EV175-0307000980
EV175-03070010100
EV175-03070011125
EV175-0307001240M88000502.511217
EV175-0307001350
EV175-0307001463
EV175-0307001550M108000
EV175-0307001660
EV175-0307001780
EV175-03070018100
EV175-0307001960M128000
EV175-0307002080
EV175-03070021100
EV175-03070022125
EV175-0307002340M88000602.511217
EV175-0307002450
EV175-0307002563
EV175-0307002650M1010000
EV175-0307002760
EV175-0307002880
EV175-03070029100
EV175-0307003060M1210000
EV175-0307003180
EV175-03070032100
EV175-03070033125
EV175-0307003440M8800080312217
EV175-0307003550
EV175-0307003663
EV175-0307003750M1010000
EV175-0307003860
EV175-0307003980
EV175-03070040100
EV175-0307004160M1212000
EV175-0307004280
EV175-03070043100
EV175-03070044125
